Same model may have multiple batches, images only for reference.

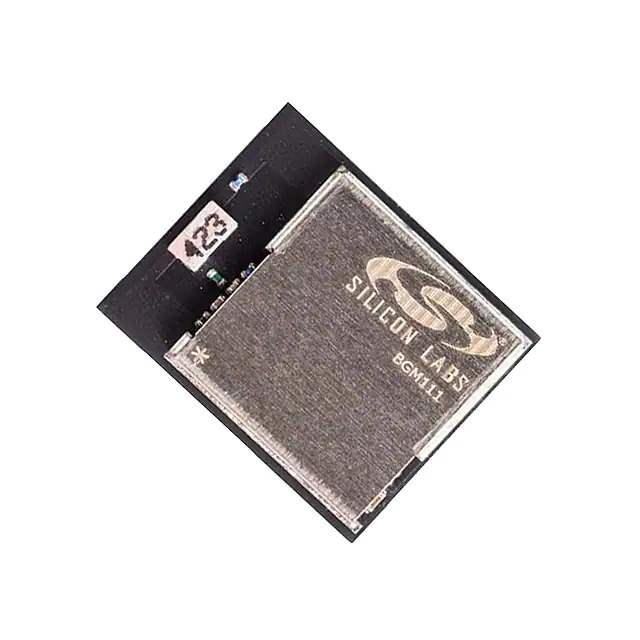

BGM111A256V2 Real Image
Same model may have multiple batches, images only for reference.

BGM111A256V2

Part No BGM111A256V2
Manufacturer Silicon Labs
Catalog RF Transceiver Modules
Description RF TXRX MOD BLUETOOTH CHIP SMD / Bluetooth Bluetooth v4.2 Transceiver Module 2.4GHz Integrated, Chip Surface Mount
Datasheet
BGM111A256V2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Silicon Labs
Package Strip
Product Status Discontinued
Programmable Not Verified
RF Family/Standard Bluetooth
Protocol Bluetooth v4.2
Modulation GFSK
Frequency 2.4GHz
Data Rate 1Mbps
Power - Output 8dBm
Sensitivity -92dBm
Serial Interfaces I2C, I2S, SPI, UART
Antenna Type Integrated, Chip
Utilized IC / Part EFR32BG
Memory Size 256kB Flash, 32kB RAM
Voltage - Supply 1.85V ~ 3.8V
Current - Receiving 8.7mA
Current - Transmitting 8.2mA ~ 23.3mA
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 85°C
Package / Case Module
Base Product Number BGM111
Standard Package 100 pcs
MSL Level 3 (168 Hours)
ECCN 5A992C
HTSUS 8517.62.0090
Win Source Part Number 864215-BGM111A256V2
Ultra Librarian 3D Model Ultra Librarian BGM111A256V2 CAD Model

Description

The BGM111A256V2 is a RF transceiver module designed for Bluetooth communication.

  • Type: RF Transceiver Module
  • Frequency: 2.4GHz
  • Protocol: Bluetooth v4.2
  • Memory Size: 256kB Flash
  • RAM Size: 32kB RAM
  • Antenna: Integrated Chip Antenna
  • Power Output: 8dBm
  • Serial Interfaces: I2C, I2S, SPI, UART
