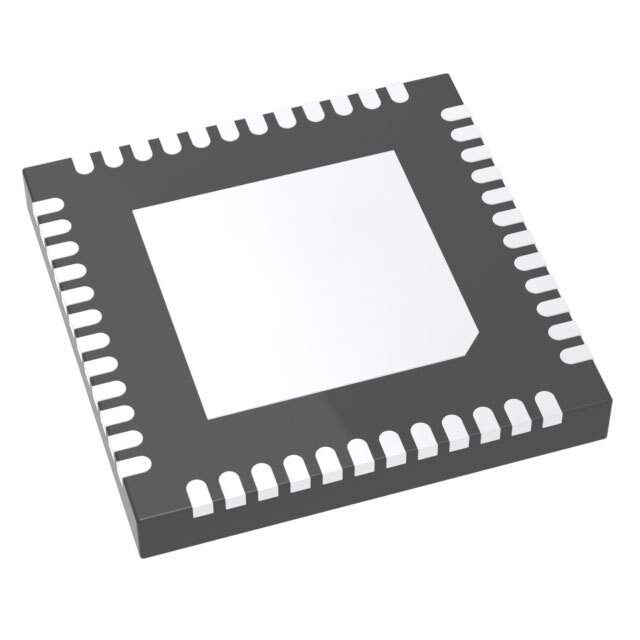

EFR32ZG23B010F512IM48-B Real Image
Same model may have multiple batches, images only for reference.

EFR32ZG23B010F512IM48-B

Part No EFR32ZG23B010F512IM48-B
Manufacturer Silicon Labs
Catalog RF Transceiver ICs
Description ZG23, SUB-GHZ, 512KB FLASH, 64KB / IC RF TxRx + MCU General ISM < 1GHz Z-Wave® 863MHz ~ 870MHz, 902MHz ~ 928MHz 48-VFQFN Exposed Pad
Datasheet
EFR32ZG23B010F512IM48-B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver ICs
Mfr Silicon Labs
Package Tube
Product Status Not For New Designs
Type TxRx + MCU
RF Family/Standard General ISM < 1GHz
Protocol Z-Wave®
Modulation 2FSK, 2GFSK, DSSS, O-QPSK
Frequency 863MHz ~ 870MHz, 902MHz ~ 928MHz
Data Rate (Max) 100kbps
Power - Output 14dBm
Sensitivity -110dBm
Memory Size 512kB Flash, 64kB RAM
Serial Interfaces ADC, GPIO, I²C, I²S, SPI, IrDA, UART
GPIO 31
Voltage - Supply 1.71V ~ 3.8V
Current - Receiving 6.8mA ~ 7.6mA
Current - Transmitting 16mA ~ 41.3mA
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting Type Surface Mount
Package / Case 48-VFQFN Exposed Pad
Supplier Device Package 48-QFN (6x6)
Base Product Number EFR32ZG23B010
Standard Package 50
MSL Level 2 (1 Year)
ECCN 5A992C
HTSUS 8542.31.0001
Win Source Part Number 1342051-EFR32ZG23B010F512IM48-B
Ultra Librarian 3D Model Ultra Librarian EFR32ZG23B010F512IM48-B CAD Model

Description

The EFR32ZG23B010F512IM48-B is a RF transceiver IC that is designed for use in Z-Wave® applications.

  • Function: TxRx + MCU
  • Frequency: 863MHz ~ 870MHz, 902MHz ~ 928MHz
  • Memory Size: 512kB Flash, 64kB RAM
  • Power Output: 14dBm
  • Sensitivity: -110dBm
  • Data Rate: 100kbps
  • Current - Receiving: 6.8mA ~ 7.6mA
  • Modulation: 2FSK, 2GFSK, DSSS, O-QPSK
  • Serial Interfaces: ADC, GPIO, I²C, I²S, SPI, IrDA, UART
  • GPIO: 31
  • Current - Transmitting: 16mA ~ 41.3mA
  • Voltage - Supply: 1.71V ~ 3.8V
  • Package / Case: 48-VFQFN Exposed Pad
  • Operating Temperature: -40℃ ~ 125℃
  • Manufacturer: Silicon Labs
