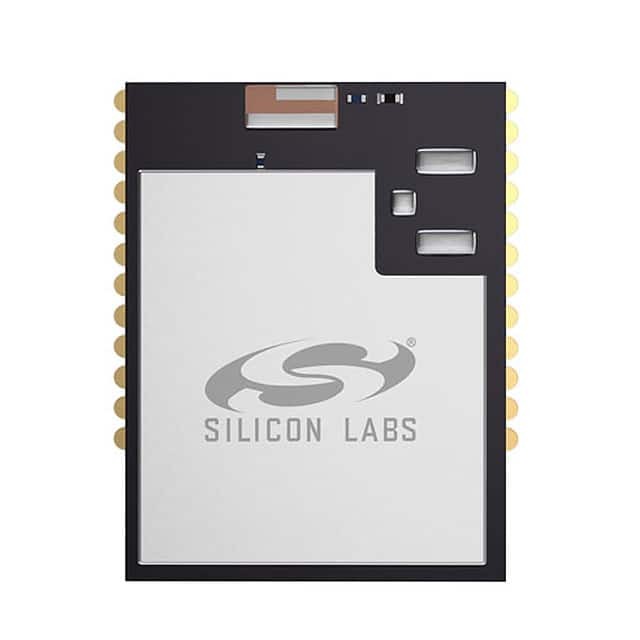

Same model may have multiple batches, images only for reference.
MGM12P22F1024GE-V2R
Same model may have multiple batches, images only for reference.

MGM12P22F1024GE-V2R

Part No MGM12P22F1024GE-V2R
Manufacturer Silicon Labs
Catalog RF Transceiver Modules
Description RF TXRX MOD BLUETOOTH U.FL SMD / 802.15.4, Bluetooth Transceiver Module 2.4GHz Antenna Not Included, U.FL Surface Mount
Datasheet
MGM12P22F1024GE-V2R Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Silicon Labs
Series Mighty Gecko
Package Tape & Reel
Product Status Discontinued
Programmable Not Verified
RF Family/Standard 802.15.4, Bluetooth
Modulation 2-FSK, 4-FSK, DSSS, GFSK, GMSK, O-QPSK
Frequency 2.4GHz
Data Rate 2Mbps
Power - Output 10dBm
Sensitivity -105dBm
Serial Interfaces I2C, SPI, UART
Antenna Type Antenna Not Included, U.FL
Utilized IC / Part EFR32MG12
Memory Size 1MB Flash, 256kB RAM
Voltage - Supply 1.8V ~ 3.8V
Current - Receiving 10.3mA
Current - Transmitting 10mA
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 85°C
Package / Case Module
Standard Package 1,000 pcs
Moisture Sensitivity Level (MSL) 3 (168 Hours)
ECCN 5A992C
HTSUS 8517.62.0090
Win Source Part Number 884586-MGM12P22F1024GE-V2R
Ultra Librarian 3D Model Ultra Librarian MGM12P22F1024GE-V2R CAD Model

Description

The MGM12P22F1024GE-V2R is a Mighty Gecko RF transceiver module designed for wireless communication applications.

  • Frequency: 2.4GHz
  • Data Rate: 2Mbps
  • Memory Size: 1MB Flash and 256kB RAM
  • Modulation Schemes: 2-FSK, 4-FSK, DSSS, GFSK, GMSK, and O-QPSK
  • Power Output: 10dBm
  • Sensitivity: -105dBm
  • Package: module
  • Manufacturer: Silicon Labs
  • Series: Mighty Gecko
  • Application: wireless communication
