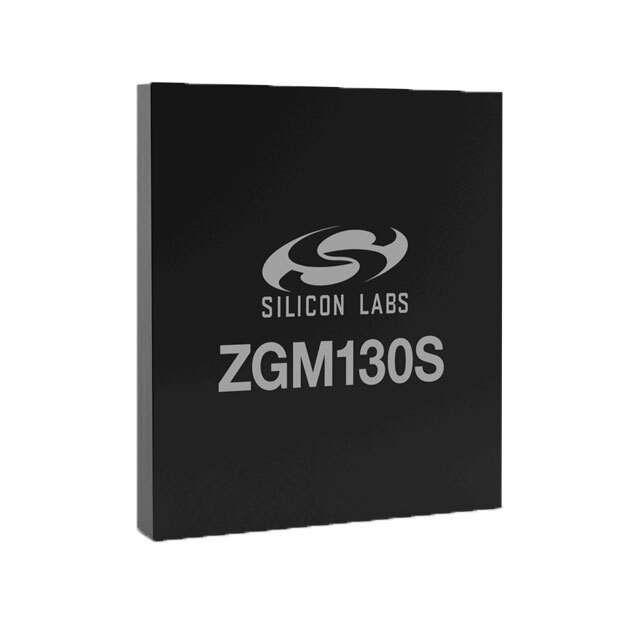

ZGM130S037HGN1R Real Image
Same model may have multiple batches, images only for reference.

ZGM130S037HGN1R

Part No ZGM130S037HGN1R
Manufacturer Silicon Labs
Catalog RF Transceiver Modules
Description RF TXRX MODULE ISM < 1GHZ SMD / General ISM < 1GHz Z-Wave® Transceiver Module 863MHz ~ 876MHz, 902MHz ~ 930MHz Antenna Not Included Surface Mount
Datasheet
ZGM130S037HGN1R Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Silicon Labs
Series Z-Wave®
Package Tape & Reel
RF Family/Standard General ISM < 1GHz
Protocol Z-Wave®
Modulation 2FSK, GFSK
Frequency 863MHz ~ 876MHz, 902MHz ~ 930MHz
Data Rate 100Kbps
Power - Output 13dBm
Sensitivity -102.6dBm
Serial Interfaces ADC, GPIO, I²C, I²S, IrDA, PWM, SPI, UART
Antenna Type Antenna Not Included
Utilized IC / Part ZGM130S
Memory Size 512kB Flash, 64kB RAM
Voltage - Supply 1.8V ~ 5.5V
Current - Receiving 9.8mA
Current - Transmitting 13.3mA ~ 40.7mA
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 85°C (TA)
Package / Case 64-LFLGA
Standard Package 2,000
MSL Level 3 (168 Hours)
ECCN 5A992C
HTSUS 8517.62.0090
Win Source Part Number 1346967-ZGM130S037HGN1R
Ultra Librarian 3D Model Ultra Librarian ZGM130S037HGN1R CAD Model

Description

The ZGM130S037HGN1R RF Transceiver Module is a Z-Wave® module designed for RF and wireless applications.

  • Series: Z-Wave®
  • Frequency Range: 863MHz ~ 876MHz and 902MHz ~ 930MHz
  • Data Rate: 100Kbps
  • Memory Size: 512kB Flash and 64kB RAM
  • Sensitivity: -102.6dBm
  • Power Output: 13dBm
  • HTSUS Code: 8517.62.0090
  • Manufacturer: Silicon Labs
