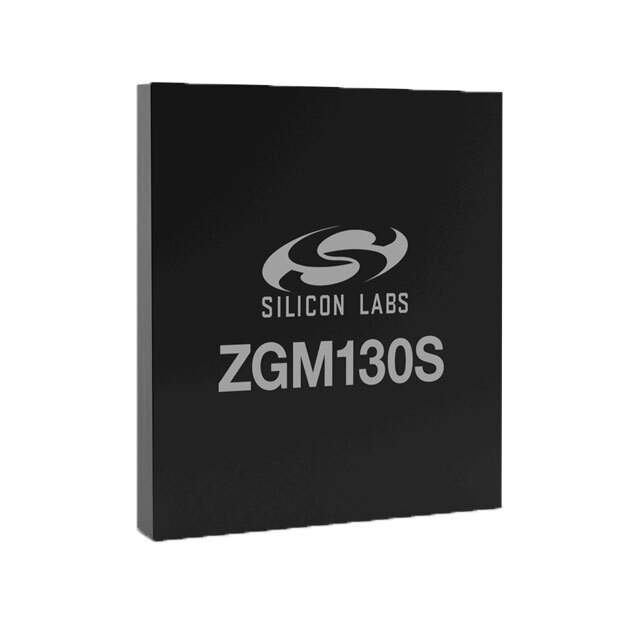

Same model may have multiple batches, images only for reference.

ZGM130S037HGN1

Name: ZGM130S037HGN1
Brand: Silicon Labs
SKU: 1346966
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ZGM130S037HGN1
Manufacturer	Silicon Labs
Catalog	RF Transceiver Modules
Description	RF TXRX MODULE ISM < 1GHZ SMD / General ISM < 1GHz Z-Wave® Transceiver Module 863MHz ~ 876MHz, 902MHz ~ 930MHz Antenna Not Included Surface Mount
Datasheet	ZGM130S037HGN1 Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	RF and Wireless - RF Transceiver Modules and Modems
Mfr	Silicon Labs
Series	Z-Wave®
Package	Tray
RF Family/Standard	General ISM < 1GHz
Protocol	Z-Wave®
Modulation	2FSK, GFSK
Frequency	863MHz ~ 876MHz, 902MHz ~ 930MHz
Data Rate	100Kbps
Power - Output	13dBm
Sensitivity	-102.6dBm
Serial Interfaces	ADC, GPIO, I²C, I²S, IrDA, PWM, SPI, UART
Antenna Type	Antenna Not Included
Utilized IC / Part	ZGM130S
Memory Size	512kB Flash, 64kB RAM
Voltage - Supply	1.8V ~ 5.5V
Current - Receiving	9.8mA
Current - Transmitting	13.3mA ~ 40.7mA
Mounting Type	Surface Mount
Temperature Range - Operating	-40°C ~ 85°C (TA)
Package / Case	64-LFLGA
Standard Package	207
MSL Level	3 (168 Hours)
ECCN	5A992C
HTSUS	8517.62.0090
Win Source Part Number	1346966-ZGM130S037HGN1
Ultra Librarian 3D Model	Ultra Librarian ZGM130S037HGN1 CAD Model

Description

The Silicon Labs ZGM130S037HGN1 is a Z-Wave RF transceiver module that operates in a frequency range of 863MHz to 930MHz.

Frequency Range: 863MHz to 930MHz
Data Rate: 100Kbps
Sensitivity: -102.6dBm
Packaging: Tray
Temperature Range: -40°C to 85°C
