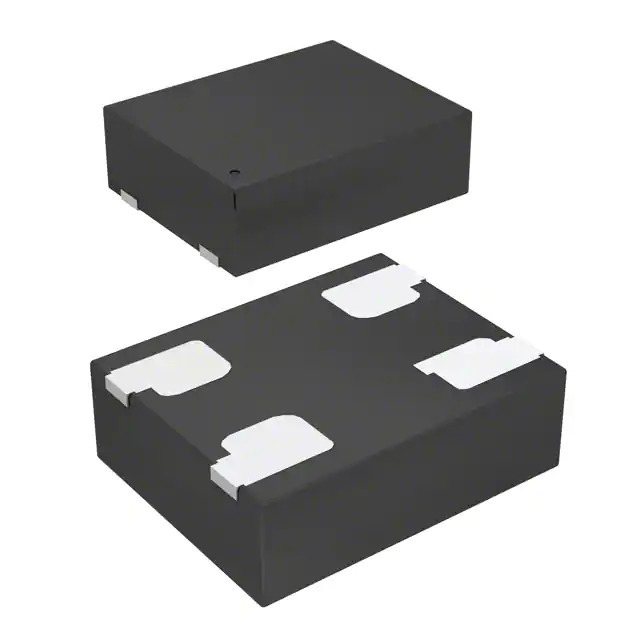

Same model may have multiple batches, images only for reference.
SIT8008AI-12-33E-24.000000 SiTIME
Same model may have multiple batches, images only for reference.

SIT8008AI-12-33E-24.000000

Part No SIT8008AI-12-33E-24.000000
Manufacturer SiTIME
Catalog Oscillators
Description MEMS OSC XO 24.0000MHZ H/LV-CMOS / 24 MHz XO (Standard) HCMOS, LVCMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Datasheet
SIT8008AI-12-33E-24.000000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr SiTime
Series SiT8008
Package Strip
Product Status Active
Base Resonator MEMS
Type XO (Standard)
Frequency 24 MHz
Function Enable/Disable
Output HCMOS, LVCMOS
Voltage - Supply 3.3V
Frequency Stability ±25ppm
Absolute Pull Range (APR) -
Temperature Range - Operating -40°C ~ 85°C
Spread Spectrum Bandwidth -
Current - Supply (Max) 4.5mA
Ratings -
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.031" (0.80mm)
Current - Supply (Disable) (Max) 4mA
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1379873-SIT8008AI-12-33E-24.000000
Ultra Librarian 3D Model Ultra Librarian SIT8008AI-12-33E-24.000000 CAD Model

Description

The SiT8008AI-12-33E-24.000000 is a crystal oscillator from SiTime.

  • Frequency: 24 MHz
  • Voltage - Supply: 3.3V
  • Mounting Type: Surface Mount
  • Package / Case: 4-SMD, No Lead
  • Operating Temperature: -40°C ~ 85°C
  • Type: MEMS
  • Output: HCMOS, LVCMOS
  • Current - Supply (Max): 4.5mA
  • Current - Supply (Disable) (Max): 4mA
  • Frequency Stability: ±25ppm
  • Enable/Disable: Enable/Disable
  • Size / Dimension: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Height - Seated (Max): 0.031" (0.80mm)
