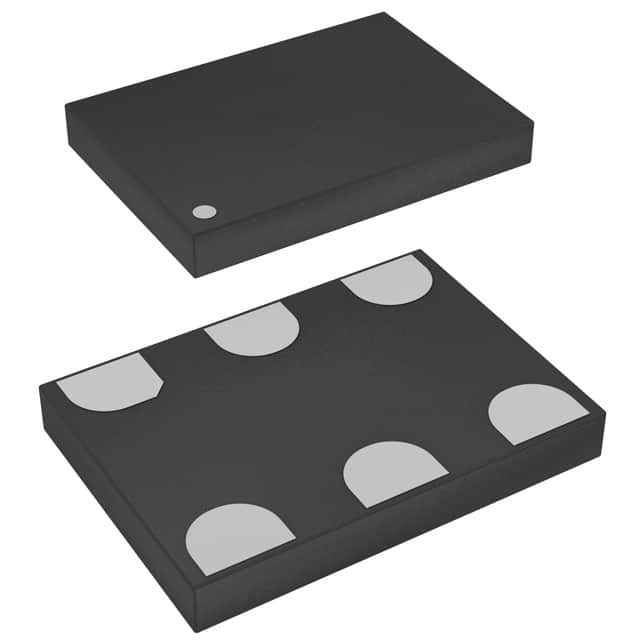

Same model may have multiple batches, images only for reference.
SIT9120AC-1D3-33E133.330000 SiTIME
Same model may have multiple batches, images only for reference.

SIT9120AC-1D3-33E133.330000

Part No SIT9120AC-1D3-33E133.330000
Manufacturer SiTIME
Catalog Oscillators
Datasheet
SIT9120AC-1D3-33E133.330000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr SiTime
Series SiT9120
Package Strip
Base Resonator MEMS
Type XO (Standard)
Frequency 133.33 MHz
Function Enable/Disable
Output LVPECL
Voltage - Supply 3.3V
Frequency Stability ±50ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 69mA
Mounting SMD (SMT)
Package / Case 6-SMD, No Lead
Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.039" (1.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1316248-SIT9120AC-1D3-33E133.330000
Ultra Librarian 3D Model Ultra Librarian SIT9120AC-1D3-33E133.330000 CAD Model

Description

SiT9120AC-1D3-33E133.330000 is a high-performance oscillator from SiTIME.

  • Type: Standard XO
  • Frequency: 133.33 MHz
  • Package: Strip
  • Height: 0.039 inches
  • Mounting: Surface Mount Technology (SMT)
  • Outputs: LVPECL
  • Frequency Stability: ±50ppm
  • Current Supply: 69mA
It is ideal for use in networking equipment, communication systems, and other electronic devices that require precise timing and synchronization.
