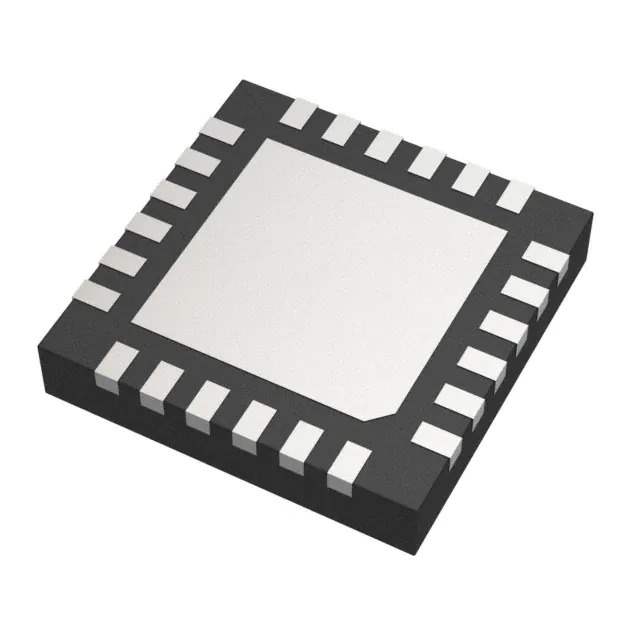

AAT2822IBK-1-T1 Real Image
Same model may have multiple batches, images only for reference.

AAT2822IBK-1-T1

Part No AAT2822IBK-1-T1
Manufacturer Skyworks Solutions Inc.
Catalog PMIC - LED Drivers
Description IC LED DRV RGLTR PWM 50MA 24TQFN / LED Driver IC 1 Output DC DC Regulator Step-Up (Boost) PWM Dimming 50mA 24-TQFN (4x4)
Datasheet
AAT2822IBK-1-T1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - LED Drivers
Mfr Skyworks Solutions Inc.
Series ChargePump™
Package Tape & Reel
Product Status Obsolete
Type DC DC Regulator
Topology Step-Up (Boost)
Internal Switch(s) Yes
Number of Outputs 1
Voltage - Supply (Min) 2.5V
Voltage - Supply (Max) 5.5V
Voltage - Output 14.5V
Current - Output / Channel 50mA
Frequency 1.3MHz
Dimming PWM
Applications Automotive, Backlight
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 24-WFQFN Exposed Pad
Supplier Device Package 24-TQFN (4x4)
Base Product Number AAT2822
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 34144-AAT2822IBK-1-T1
Ultra Librarian 3D Model Ultra Librarian AAT2822IBK-1-T1 CAD Model

Description

AAT2822IBK-1-T1 Detailed Description

The AAT2822IBK-1-T1 is an efficient boost converter designed specifically for driving white LEDs in various portable devices, offering significant energy savings and extended battery life.

  • Applications:
    • Flashlights
    • LED Display Backlighting
    • Portable Media Players
  • Features and Benefits:
    • Minimum external components
    • Integrated soft start
    • Over-current and over-temperature protection
    • High output voltage capability
  • Additional Details:
    • Output Voltage: Up to 24V
    • Switch Current Limit: 600mA
    • Thermal Shut Down Activates at 150°C
