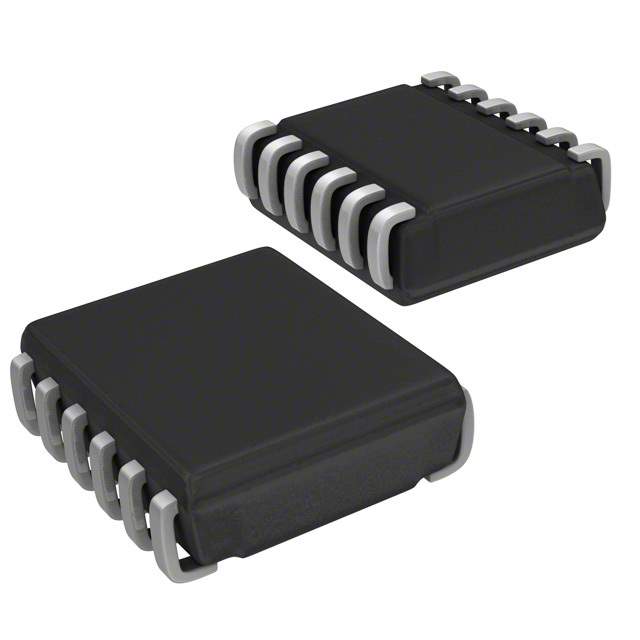

AAT3242ITP-WI-T1 Real Image
Same model may have multiple batches, images only for reference.

AAT3242ITP-WI-T1

Part No AAT3242ITP-WI-T1
Manufacturer Skyworks Solutions Inc.
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 3.3V/1.8V DL 12TSOP
Datasheet
AAT3242ITP-WI-T1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Skyworks Solutions Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Number of Regulators 2
Output Current 300mA, 150mA
Temperature Range - Operating -40°C to 85°C
Regulator Topology Positive Fixed
Output Voltage 3.3V, 1.8V
Voltage - Dropout (Typical) 0.4V @ 300mA, -
Mounting SMD (SMT)
Case / Package 12-TSOPJW
Win Source Part Number 169755-AAT3242ITP-WI-T1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AAT3242ITP-WI-T1 CAD Model

Description

Product Overview

The AAT3242ITP-WI-T1 delivers powerful voltage regulation with excellent load and line regulation characteristics, designed for demanding portable and handheld electronic solutions.

Features and Benefits

  • Stable Voltage Output: Ensures consistent device performance.
  • Built-in Soft Start: Reduces startup current spike risks.
  • Low Quiescent Current: Extends battery life in portable applications.
  • Adjustable Output Voltage: Offers versatility across various applications.
  • Compact Footprint: Perfect for high-density circuit boards.

Applications

  • Handheld Gaming Consoles
  • Portable Navigation Systems
  • Wireless Speakers
  • Digital Camcorders
  • Remote Sensors

With top-tier design and functionality, the AAT3242ITP-WI-T1 is ideal for applications that require high efficiency and reliability.
