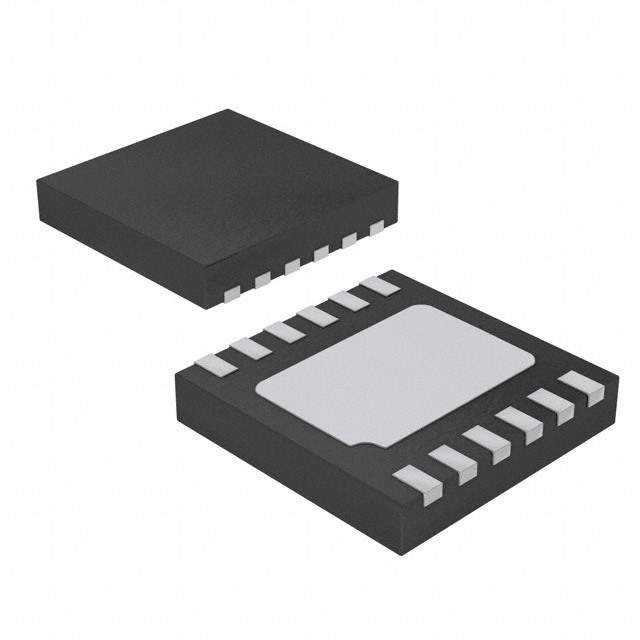

AAT3685IWP-4.2-T1 Real Image
Same model may have multiple batches, images only for reference.

AAT3685IWP-4.2-T1

Part No AAT3685IWP-4.2-T1
Manufacturer Skyworks Solutions Inc.
Catalog PMIC - Battery Chargers
Description 1A ADP/USB BAT CHRGR 12TDFN
Datasheet
AAT3685IWP-4.2-T1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Skyworks Solutions Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Battery Chemistry Lithium-Ion/Polymer
Number of Cells 1
Current - Charging Constant - Programmable
Programmable Fault Protection Over Temperature, Over Voltage
Charge Current - Max 1A
Battery Pack Voltage 4.2V
Maximum Supply Voltage 5.5V
Temperature Range - Operating -40°C to 85°C (TJ)
Case / Package 12-TDFN (3x3)
Win Source Part Number 113908-AAT3685IWP-4.2-T1
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian AAT3685IWP-4.2-T1 CAD Model

Description

Description

The AAT3685IWP-4.2-T1 is a versatile battery charger IC designed to optimize the charging of single-cell lithium-ion/polymer batteries, ensuring both safety and performance.

Features and Benefits

  • Accurate 4.2V output
  • Advanced power management
  • Built-in protection against overcharging
  • Compact and efficient design

Applications

  • Handheld Devices
  • GPS Units
  • Rechargeable Toys

Additional Details

This component facilitates increased battery life and efficiency, making it an ideal solution for portable devices.
