Same model may have multiple batches, images only for reference.

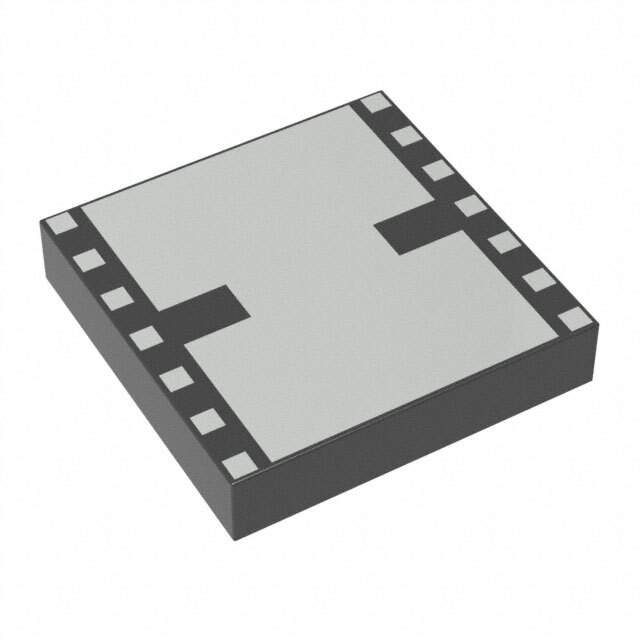

AWB7223RM52P8 Real Image
Same model may have multiple batches, images only for reference.

AWB7223RM52P8

Part No AWB7223RM52P8
Manufacturer Skyworks Solutions Inc.
Catalog RF Amplifiers
Description IC AMP HSDPA 1.93-1.995GHZ MOD / 1.930 -1.995 GHz Small-Cell Power Amplifier Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Skyworks Solutions Inc.
Packaging Reel
Part Status Last Time Buy
Frequency 1.93GHz ~ 1.995GHz
P1dB 35dBm
Gain 30.5dB
RF Type HSDPA, LTE, WCDMA
Supply Voltage (V) 4.5V
Current - Supply 720mA
Test Frequency 1.93GHz
Manufacturer Package 14-SMD Module
Supplier Device Package Module
Manufacturer Pack Quantity 2,500
MSL Level 4 (72 Hours)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 807858-AWB7223RM52P8
Ultra Librarian 3D Model Ultra Librarian AWB7223RM52P8 CAD Model

Description

The Skyworks Solutions Inc. AWB7223RM52P8 is a module RF type from Skyworks Solutions Inc.

  • Gain: 30.5dB
  • Frequency Range: 1.93GHz ~ 1.995GHz
  • Current Supply: 720mA
  • P1dB: 35dBm
  • Applications: HSDPA, LTE, and WCDMA
  • Packaging: Reel
  • Manufacturer Package: 14-SMD Module
  • Part Status: Last time buy
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 2,500
  • MSL Level: 4 (72 Hours)
  • Supply Voltage: 4.5V
