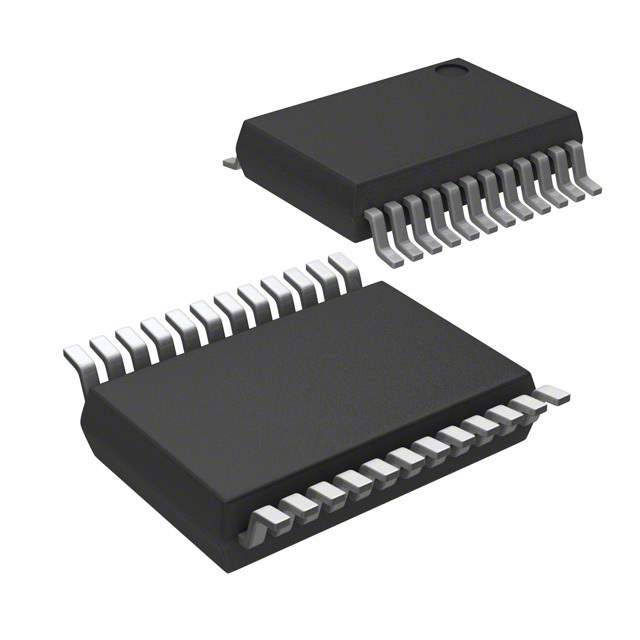

SI4820-A10-CU Real Image
Same model may have multiple batches, images only for reference.

SI4820-A10-CU

Part No SI4820-A10-CU
Manufacturer Skyworks Solutions Inc.
Catalog RF Receivers
Description RF RX AM/FM 504KHZ-1.75MHZ SSOP
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Features series RF Receiver AM, FM 504kHz ~ 1.75MHz, 5.6MHz ~ 22MHz, 64MHz ~ 109MHz - - PCB, Surface Mount 24-SSOP
Manufacturer Skyworks Solutions Inc.
Package Tray
Part Status Not For New Designs
Operating Temperature Range 0°C ~ 70°C
Mounting Surface Mount
Package 24-SSOP (0.154", 3.90mm Width)
Case / Package 24-SSOP
Family Name SI4820
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Quantity per package 56
Popularity High
Supply and Demand Status Balance
Win Source Part Number 894594-SI4820-A10-CU
Ultra Librarian 3D Model Ultra Librarian SI4820-A10-CU CAD Model

Description

The Skyworks Solutions Inc. RF receiver is an AM/FM receiver that operates in the frequency range of 504 kHz to 1.75 MHz, 5.6 MHz to 22 MHz, and 64 MHz to 109 MHz.

  • Frequency Range: 504 kHz to 1.75 MHz, 5.6 MHz to 22 MHz, and 64 MHz to 109 MHz
  • Package: 24-SSOP (0.154", 3.90mm Width)
  • Mounting Type: Surface Mount
  • Status: Not Recommended for New Designs
  • Operating Temperature Range: 0°C to 70°C
