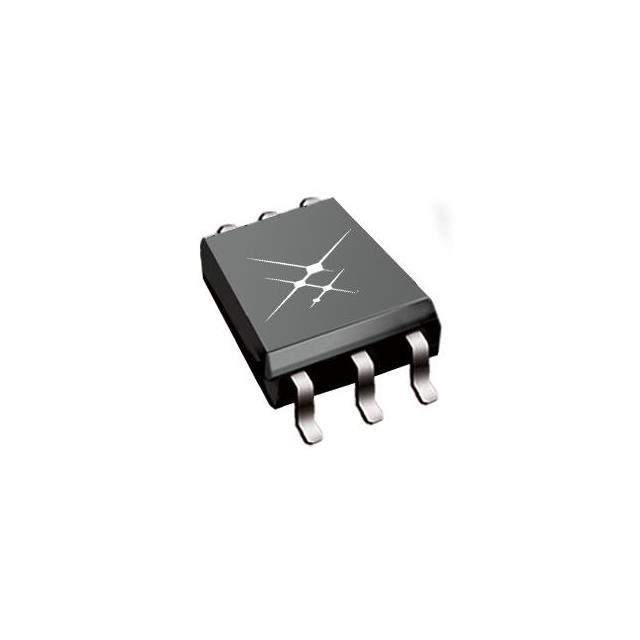

SI8261ACD-C-ISR

Name: SI8261ACD-C-ISR
Brand: Skyworks Solutions Inc.
SKU: 996747
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SI8261ACD-C-ISR
Manufacturer	Skyworks Solutions Inc.
Catalog	PMIC - Gate Drivers
Description	DGTL ISO 5KV 1CH GATE DRVR 6SDIP / 600mA Gate Driver Capacitive Coupling 5000Vrms 1 Channel 6-SDIP Gull Wing
Datasheet	SI8261ACD-C-ISR Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Isolators>Isolators - Gate Drivers
Mfr	Skyworks Solutions Inc.
Series	Automotive, AEC-Q100
Package	Tape & Reel (TR)
Technology	Capacitive Coupling
Number of Channels	1
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	35kV/µs
Propagation Delay tpLH / tpHL (Max)	60ns, 50ns
Pulse Width Distortion (Max)	28ns
Rise / Fall Time (Typ)	5.5ns, 8.5ns
Current - Output High, Low	400mA, 600mA
Current - Peak Output	600mA
Voltage - Forward (Vf) (Typ)	2.8V (Max)
Current - DC Forward (If) (Max)	30 mA
Voltage - Output Supply	13.5V ~ 30V
Temperature Range - Operating	-40°C ~ 125°C
Mounting	SMD (SMT)
Package / Case	6-SOIC (0.295", 7.50mm Width)
Supplier Device Package	6-SDIP Gull Wing
Approval Agency	CQC, CSA, UR, VDE
Base Product Number	SI8261
MSL Level	3 (168 Hours)
ECCN	EAR99
HTSUS	8542.39.0001
Standard Package	1,000
Win Source Part Number	996747-SI8261ACD-C-ISR
Ultra Librarian 3D Model	Ultra Librarian SI8261ACD-C-ISR CAD Model

Alternative Products

Description

The SI8261ACD-C-ISR is a gate driver isolator from Skyworks Solutions Inc. It is a part of the Isolators category, specifically under Isolators - Gate Drivers.

Technology: Capacitive coupling
Voltage Isolation: 5000Vrms
Current Output High: 400mA
Current Output Low: 600mA
Temperature Range: -40°C to 125°C
