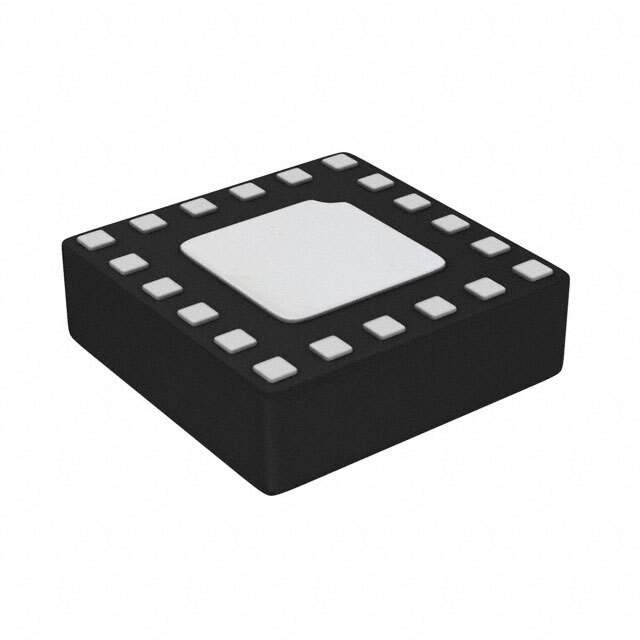

SKY13473-569LF Real Image
Same model may have multiple batches, images only for reference.

SKY13473-569LF

Part No SKY13473-569LF
Manufacturer Skyworks Solutions Inc.
Catalog RF Switches
Description IC RF SWITCH SP10T 2.7GHZ 20QFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Skyworks Solutions Inc.
Packaging Reel
RF Type 3G/4G
Circuit SP10T
Frequency Range 400MHz ~ 2.7GHz
Isolation 30dB
Insertion Loss 0.6dB
Test Frequency 2GHz
Impedance 50Ohm
Supply Voltage (V) 2.5V ~ 5V
Temperature Range - Operating -40°C ~ 90°C
Manufacturer Package 20-WFQFN Exposed Pad
Supplier Device Package 20-QFN (2.4x2.4)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 716233-SKY13473-569LF
Popularity Low
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SKY13473-569LF CAD Model

Description

The Skyworks Solutions Inc. RF/IF and RFID component is a SP10T circuit with a frequency range of 400MHz ~ 2.7GHz and a test frequency of 2GHz.

  • Frequency Range: 400MHz ~ 2.7GHz
  • Test Frequency: 2GHz
  • Impedance: 50Ohm
  • Insertion Loss: 0.6dB
  • Isolation: 30dB
  • RF Type: 3G/4G
  • Temperature Range: -40°C ~ 90°C
  • Supplier Device Package: 20-QFN (2.4x2.4)
  • Supply Voltage: 2.5V ~ 5V
  • Package: 20-WFQFN exposed pad
  • Popularity: Low
  • Supply and Demand: Limited
  • Manufacturer Pack Quantity: 1
  • MSL Level: 1 (Unlimited)
