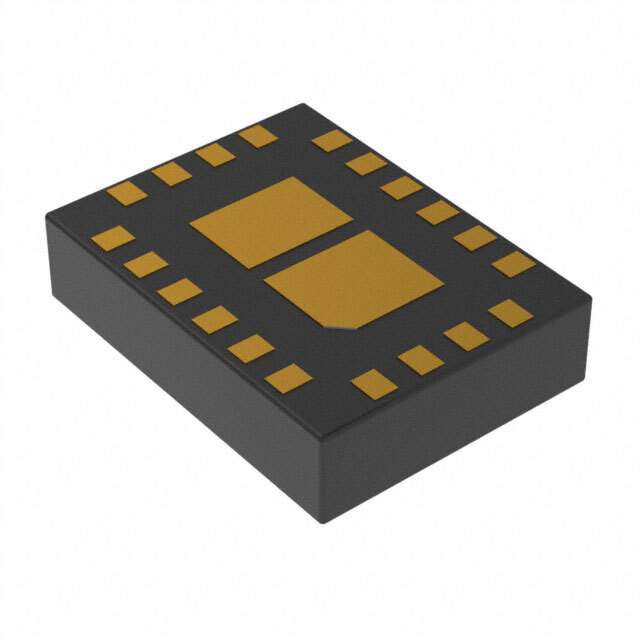

The SKY66109-11 from Skyworks Solutions is a high-efficiency, fully integrated front-end module (FEM) designed for high-power industrial, scientific, and medical (ISM) band applications. This module integrates a high-power amplifier (PA), low-noise amplifier (LNA), and transmit/receive (T/R) switch into a single, compact package. It operates in the 902-928 MHz frequency range and is optimized for long-range communication and high data rates.

Applications:

• ISM Band Radios: Used in ISM band radio systems for wireless communication.
• Smart Metering: Employed in smart meters for remote data collection and control.
• Industrial Control: Integrated into industrial control systems for wireless monitoring and automation.
• Wireless Sensors: Utilized in wireless sensor networks for data transmission.
• Internet of Things (IoT): Deployed in IoT devices for long-range communication.

Features:

• High Output Power: Delivers high output power for extended communication range.
• Integrated LNA: Includes a low-noise amplifier to improve receiver sensitivity.
• T/R Switch: Features a transmit/receive switch for half-duplex operation.
• High Efficiency: Offers high power efficiency to minimize power consumption.
• Compact Package: Available in a small form factor for easy integration.

Benefits:

• Extended Communication Range: High output power and sensitive LNA enable longer communication distances.
• Improved System Performance: Integrated LNA enhances receiver sensitivity, improving overall system performance.
• Simplified System Design: Integrated FEM simplifies system design and reduces component count.
• Longer Battery Life: High efficiency minimizes power consumption, extending battery life.
• Cost-Effective Solution: Integrated module provides a cost-effective solution for ISM band applications.

The SKY66109-11 front-end module's combination of high output power, integrated LNA, and high efficiency makes it an ideal choice for demanding ISM band applications. Its integrated design simplifies system design and reduces component count, while its high efficiency minimizes power consumption. Key specifications include an output power of up to +30 dBm, a receive gain of 12 dB, a noise figure of 2 dB, and an operating voltage of 3.3 V. This module ensures reliable and efficient wireless communication in a variety of industrial and commercial systems.
