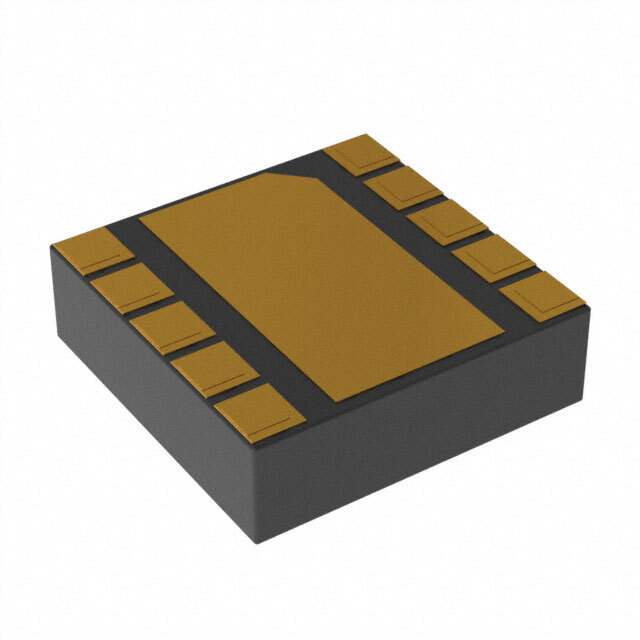

Same model may have multiple batches, images only for reference.

SKY77764-11

Name: SKY77764-11
Brand: Skyworks Solutions Inc.
SKU: 756611
Availability: InStock
Rating: 4.85 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SKY77764-11
Manufacturer	Skyworks Solutions Inc.
Catalog	RF Amplifiers
Description	IC AMP CDMA 1.71-1.785GHZ 10MCM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	RF and Wireless - RF Amplifiers
Mfr	Skyworks Solutions Inc.
Package	Tape & Reel
Product Status	Active
Frequency	1.71GHz ~ 1.785GHz
Gain	31dB
RF Type	CDMA, EDGE, HSDPA, HSUPA, HSPA+, LTE, UMTS, WCDMA
Voltage - Supply	3V ~ 4.5V
Current - Supply	460mA
Test Frequency	1.7475GHz
Mounting Type	Surface Mount
Package / Case	10-SMD Module
Supplier Device Package	10-MCM (3x3)
Base Product Number	SKY77764
Standard Package	4,500 pcs
MSL Level	3 (168 Hours)
ECCN	EAR99
HTSUS	8542.33.0001
Win Source Part Number	756611-SKY77764-11
Ultra Librarian 3D Model	Ultra Librarian SKY77764-11 CAD Model

Alternative Products

Description

The SKY77764-11 is an RF amplifier designed for CDMA, EDGE, HSDPA, HSUPA, HSPA+, LTE, UMTS, WCDMA applications. It falls under the category of RF and Wireless - RF Amplifiers.

Test Frequency: 1.7475GHz
Frequency Range: 1.71GHz to 1.785GHz
Gain: 31dB
Current Supply: 460mA
Voltage Supply Range: 3V to 4.5V
Package: surface mount
Package Size: 10-SMD Module
Supplier Device Package: 10-MCM (3x3)
Product Status: active
Base Product Number: SKY77764
Manufacturer: Skyworks Solutions Inc.
