Same model may have multiple batches, images only for reference.

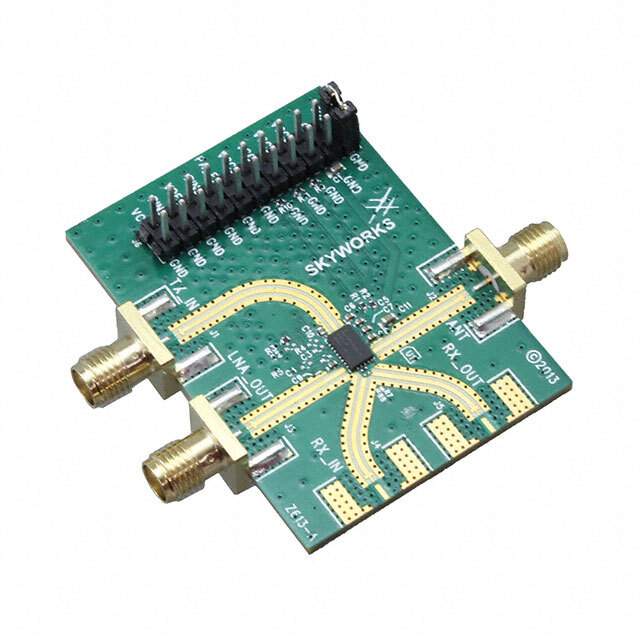

SKY85309-11EK1 Real Image
Same model may have multiple batches, images only for reference.

SKY85309-11EK1

Part No SKY85309-11EK1
Manufacturer Skyworks Solutions Inc.
Catalog RF Evaluation and Development Kits, Boards
Description SKY85309-11-EVALUATION KIT / SKY85309-11 series Front End Evaluation Board
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers>RF Evaluation and Development Kits, Boards
Mfr Skyworks Solutions Inc.
Package Box
Type Front End
Frequency 2GHz
For Use With/Related Products SKY85309-11
Supplied Contents Board(s)
Base Product Number SKY85309
MSL Level 1 (Unlimited)
ECCN 3B992B
HTSUS 8473.30.1180
Other Names 863-2019
Standard Package 1
Win Source Part Number 1093438-SKY85309-11EK1
Ultra Librarian 3D Model Ultra Librarian SKY85309-11EK1 CAD Model

Description

The SKY85309-11EK1 is a front end type development board used for RF evaluation and development kits.

  • Manufacturer: Skyworks Solutions Inc.
  • Frequency: operate at a frequency of 2GHz
  • Package: a box
  • Supplied with: board(s)
  • ECCN: 3B992B
  • HTSUS: 8473.30.1180
  • Base Product Number: SKY85309
