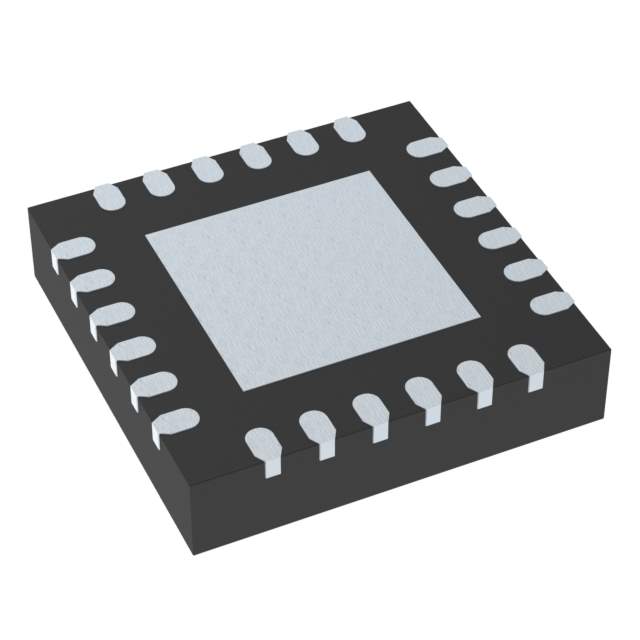

The SI5335A-B04402-GM is a clock generator IC from Skyworks Solutions Inc. This device is part of the SI5335A family, known for its high performance and flexibility in generating precise clock frequencies. It is designed for applications requiring low jitter and the ability to synthesize multiple frequencies from a single reference clock, commonly used in networking, communications, and high-speed data systems.
Applications:
- Networking Equipment: Used in switches, routers, and other networking devices to provide accurate timing signals for data transmission and synchronization.
- Data Centers: Employed in servers and storage systems to generate precise clock signals for processors, memory, and other critical components.
- Optical Transport Networks: Integrated into optical transceivers and other optical communication equipment to generate clock frequencies for high-bandwidth data transfer.
- Broadcast Video Systems: Used in video production and distribution equipment to provide stable and synchronized clock signals for video processing and transmission.
- Test and Measurement Equipment: Found in signal generators, frequency counters, and other testing instruments to provide accurate and stable reference clocks.
Features:
- Low Jitter Performance: Offers excellent jitter performance, ensuring signal integrity in high-speed digital systems.
- Frequency Synthesis: Capable of generating multiple output frequencies from a single input reference frequency.
- I2C Programmability: Configuration and control are achieved through an I2C serial interface.
- Multiple Independent Outputs: Features multiple clock outputs, each of which can be configured with a different frequency.
- Integrated VCO: Incorporates a stable Voltage-Controlled Oscillator (VCO) for generating the base clock frequency.
- Small Footprint: Available in a compact package suitable for applications with limited board space.
Benefits:
- Enhanced Signal Integrity: Low jitter characteristics improve signal integrity and reduce bit error rates in high-speed systems.
- Design Flexibility: Ability to generate multiple frequencies from a single reference simplifies design and reduces component count.
- Simplified Configuration: I2C interface enables easy programming and control of device parameters.
- Reduced BOM Cost: Integrating multiple clock generation functions into a single chip lowers the overall bill of materials cost.
- Space-Efficient Solution: Compact package allows for use in applications with limited board space.
Additional Details:
The SI5335A-B04402-GM typically operates with a supply voltage in the range of 1.8V to 3.3V. It supports various output signal types, including LVPECL, LVDS, and CMOS. The output frequencies and configuration options are programmable via the I2C interface. Skyworks provides comprehensive datasheets, application notes, and software tools to assist developers in implementing the SI5335A-B04402-GM in diverse electronic systems.
