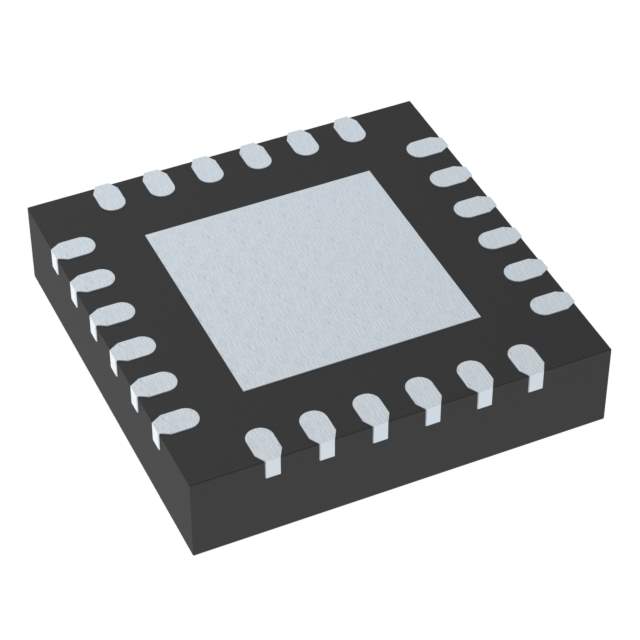

The SI5335D-B06439-GM is a quad clock generator from Skyworks Solutions Inc., part of their SI5335D family. It is designed to provide flexible and precise clock generation for a variety of electronic systems. The device offers four independent clock outputs, each capable of generating a different frequency. The device is factory programmed for a specific configuration.

Applications:

• Networking equipment (routers, switches, servers)
• Data storage systems
• Optical transport equipment
• Video and broadcast equipment
• Industrial control systems

Features:

• Four independent clock outputs
• Any-frequency clock generation
• Low phase jitter performance
• I2C or SPI programmable interface
• Internal Voltage Controlled Oscillator (VCO)
• LVCMOS output drivers
• Small form factor package
• RoHS compliant

Benefits:

• Flexibility in clock frequency selection
• Reduced BOM count compared to discrete solutions
• Improved system performance due to low jitter
• Simplified board layout
• Easy configuration via I2C or SPI
• Cost-effective solution

Additional Details:

The SI5335D-B06439-GM clock generator utilizes a digital PLL (Phase-Locked Loop) architecture to generate precise output frequencies from a reference clock input. The device can be programmed through an I2C or SPI interface to configure the output frequencies, output enable/disable, and other parameters. The 'B06439' portion of the part number indicates a specific factory programmed configuration, and it is important to consult the datasheet for the specific frequency plan and other details. The 'GM' suffix typically denotes the package type and temperature range. The device is typically powered by a 1.8V or 3.3V supply.

Proper PCB layout techniques are crucial to ensure optimal jitter performance. This includes minimizing trace lengths, using controlled impedance traces, and providing adequate power supply decoupling. The datasheet provides detailed recommendations for PCB layout and power supply filtering.
