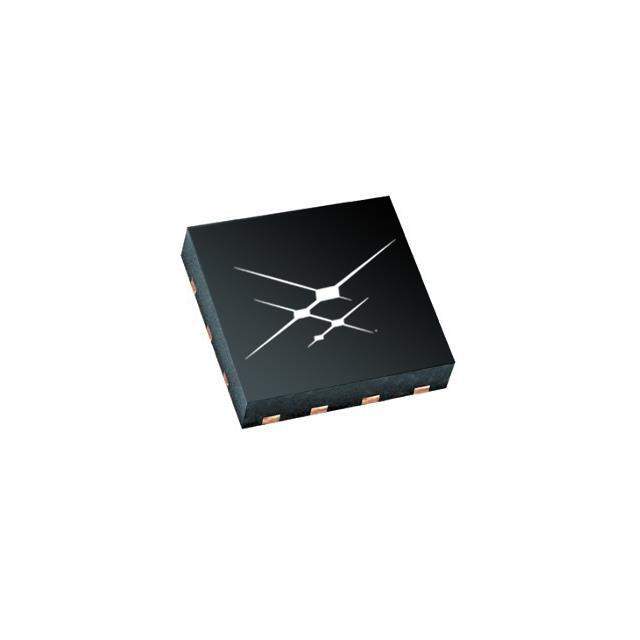

SI8233AB-D-IM1R Real Image
Same model may have multiple batches, images only for reference.

SI8233AB-D-IM1R

Part No SI8233AB-D-IM1R
Manufacturer Skyworks Solutions Inc.
Catalog Isolators - Gate Drivers
Description 2.5KV 5V UVLO HS/LS ISOLATED GAT / 4A Gate Driver Capacitive Coupling 2500Vrms 2 Channel 14-QFN (5x5)
Datasheet
SI8233AB-D-IM1R Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Isolators - Gate Drivers
Mfr Skyworks Solutions Inc.
Series Automotive, AEC-Q100
Package Tape & Reel (TR)
Technology Capacitive Coupling
Number of Channels 2
Voltage - Isolation 2500Vrms
Common Mode Transient Immunity (Min) 45kV/µs
Propagation Delay tpLH / tpHL (Max) 60ns, 60ns
Pulse Width Distortion (Max) 5.6ns
Rise / Fall Time (Typ) 12ns, 12ns
Current - Output High, Low 2A, 4A
Current - Peak Output 4A
Voltage - Output Supply 6.5V ~ 24V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 14-VDFN
Supplier Device Package 14-QFN (5x5)
Approval Agency CQC, CSA, UR, VDE
Base Product Number SI8233
Standard Package 2,500
MSL Level 2 (1 Year)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1243677-SI8233AB-D-IM1R
Ultra Librarian 3D Model Ultra Librarian SI8233AB-D-IM1R CAD Model

Description

The SI8233AB-D-IM1R is an isolator gate driver from Skyworks Solutions Inc.

  • Application: Automotive
  • Compliance: AEC-Q100
  • Channels: Two
  • Current Output High: 2A
  • Current Output Low: 4A
  • Voltage Isolation: 2500Vrms
  • Common Mode Transient Immunity: 45kV/μs
  • Propagation Delay tpLH / tpHL (Max): 60ns, 60ns
  • Pulse Width Distortion (Max): 5.6ns
  • Operating Temperature Range: -40°C to 125°C
  • Voltage Output Supply: 6.5V ~ 24V
  • Approvals: CQC, CSA, UR, and VDE
