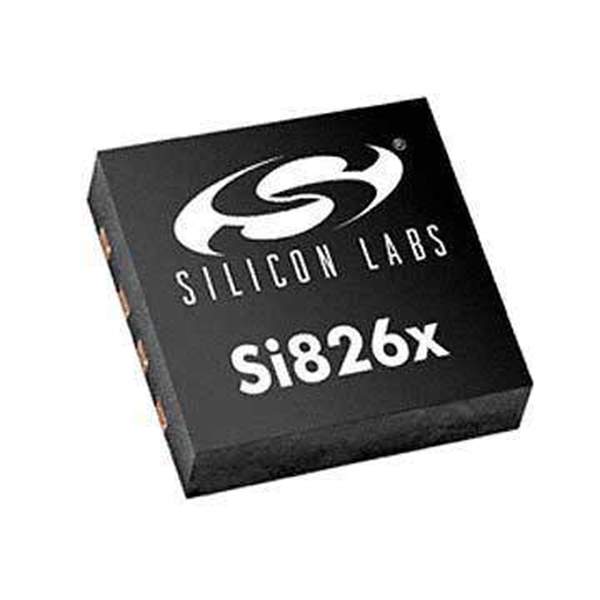

SI8261BAD-C-IMR Real Image
Same model may have multiple batches, images only for reference.

SI8261BAD-C-IMR

Part No SI8261BAD-C-IMR
Manufacturer Skyworks Solutions Inc.
Catalog Isolators - Gate Drivers
Description DGTL ISO 5KV 1CH GATE DRVR 8LGA / 4A Gate Driver Capacitive Coupling 5000Vrms 1 Channel 8-LGA (10x12.5)
Datasheet
SI8261BAD-C-IMR Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Isolators - Gate Drivers
Mfr Skyworks Solutions Inc.
Series Automotive, AEC-Q100
Package Tape & Reel (TR)
Product Status Obsolete
Technology Capacitive Coupling
Number of Channels 1
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Min) 35kV/µs
Propagation Delay tpLH / tpHL (Max) 60ns, 50ns
Pulse Width Distortion (Max) 28ns
Rise / Fall Time (Typ) 5.5ns, 8.5ns
Current - Output High, Low 500mA, 1.2A
Current - Peak Output 4A
Voltage - Forward (Vf) (Typ) 2.8V (Max)
Current - DC Forward (If) (Max) 30 mA
Voltage - Output Supply 6.5V ~ 30V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 8-VELGA
Supplier Device Package 8-LGA (10x12.5)
Approval Agency CQC, CSA, UR, VDE
Standard Package 2,500
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1243631-SI8261BAD-C-IMR
Ultra Librarian 3D Model Ultra Librarian SI8261BAD-C-IMR CAD Model

Description

The SI8261BAD-C-IMR is an isolator gate driver that is designed to provide high performance and reliability.

  • Current Output High: 500mA
  • Current Output Low: 1.2A
  • Voltage Forward (Vf): 2.8V (Max)
  • Rise/Fall Time (Typ): 5.5ns/8.5ns
  • Number of Channels: 1
  • Voltage Isolation: 5000Vrms
  • Package: Tape and Reel
  • Standard Package: 2,500
  • Mounting Type: SMD (SMT)
  • Technology: Capacitive Coupling
  • Operating Temperature Range: -40°C to 125°C
  • Supplier: Skyworks Solutions Inc.
