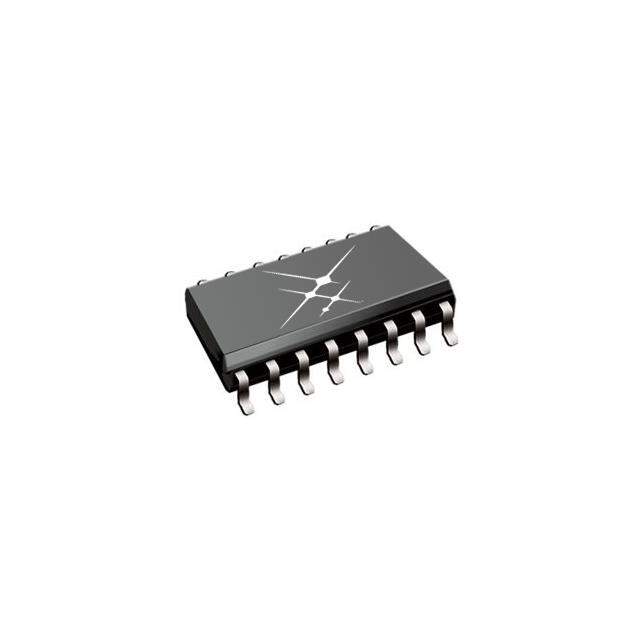

SI8274BB4D-IS1 Real Image
Same model may have multiple batches, images only for reference.

SI8274BB4D-IS1

Part No SI8274BB4D-IS1
Manufacturer Skyworks Solutions Inc.
Catalog Isolators - Gate Drivers
Description IC DGTL ISO 2.5KV GATE DVR 16SOI / 4A Gate Driver Capacitive Coupling 2500Vrms 2 Channel 16-SOIC
Datasheet
SI8274BB4D-IS1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Isolators - Gate Drivers
Mfr Skyworks Solutions Inc.
Package Tube
Technology Capacitive Coupling
Number of Channels 2
Voltage - Isolation 2500Vrms
Common Mode Transient Immunity (Min) 200kV/µs
Propagation Delay tpLH / tpHL (Max) 105ns, 75ns
Pulse Width Distortion (Max) 47ns
Rise / Fall Time (Typ) 10.5ns, 13.3ns
Current - Output High, Low 1.8A, 4A
Current - Peak Output 4A
Voltage - Output Supply 4.2V ~ 30V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package 16-SOIC
Approval Agency CQC, CSA, UR, VDE
Base Product Number SI8274
Standard Package 48
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 1243729-SI8274BB4D-IS1
Ultra Librarian 3D Model Ultra Librarian SI8274BB4D-IS1 CAD Model

Description

The SI8274BB4D-IS1 is an isolator from the isolators - gate drivers category.

  • Win Source Part Number: 1243729
  • Mounting: Surface-mount device (SMD) technology
  • Package: Tube
  • Standard Package: 48
  • Technology: Capacitive coupling technology
  • Current Output High: 1.8A
  • Current Output Low: 4A
  • Voltage Forward (Vf): Not specified
  • Rise/Fall Time (Typ): 10.5ns, 13.3ns
  • Number of Channels: 2
  • Voltage Isolation: 2500Vrms
  • Common Mode Transient Immunity (Min): 200kV/μs
  • Propagation Delay tpLH / tpHL (Max): 105ns, 75ns
  • Current Peak Output: 4A
  • Pulse Width Distortion (Max): 47ns
  • Package/Case: 16-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 16-SOIC
  • Operating Temperature: -40°C ~ 125°C
  • MSL Level: 2A (4 Weeks)
  • Voltage Output Supply: 4.2V ~ 30V
  • Manufacturer: Skyworks Solutions Inc.
  • Approvals: CQC, CSA, UR, and VDE
