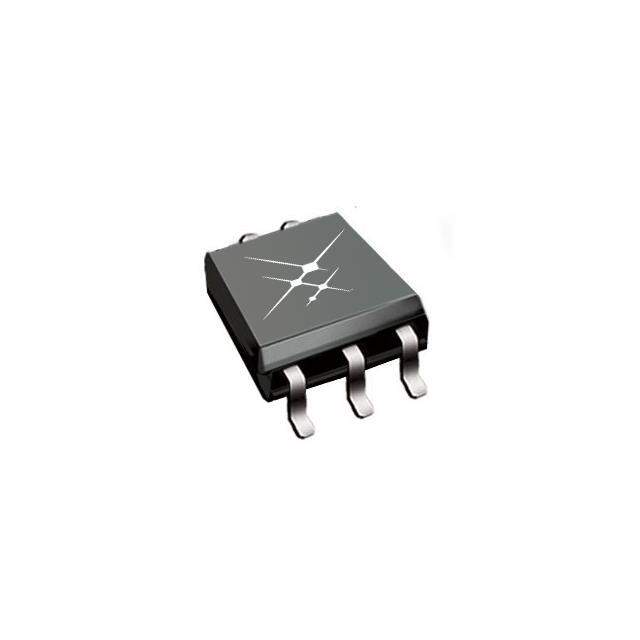

The SI8540-B-FSR is an isolated field effect transistor (FET) driver designed for driving power MOSFETs in a variety of applications, including power supplies, motor control, and lighting. This driver uses Silicon Labs' proprietary isolation technology to provide robust galvanic isolation between the input and output, protecting sensitive control circuitry from high voltages and noise.

Applications

• Isolated Power Supplies
• Motor Control Systems
• LED Lighting Drivers
• Solar Inverters
• Industrial Automation Equipment

Features

• Galvanic Isolation: Provides robust isolation for safety and noise immunity
• High Drive Strength: Capable of driving large power MOSFETs
• Fast Switching Speeds: Enables efficient power conversion
• Low Propagation Delay: Minimizes dead time and improves efficiency
• Overlapping Conduction Protection: Prevents shoot-through in bridge circuits
• Under-Voltage Lockout (UVLO): Protects the MOSFET from damage due to low voltage
• Small Package Size: Reduces board space requirements

Benefits

• Enhanced System Safety: Galvanic isolation protects against high voltages
• Improved System Reliability: Robust design ensures reliable operation in harsh environments
• Increased Power Efficiency: Fast switching speeds minimize switching losses
• Simplified System Design: Integrated features reduce external component count
• Reduced Board Space: Small package size allows for compact designs

Additional Details

The SI8540-B-FSR isolated FET driver offers a high level of performance and integration, making it an ideal choice for demanding power applications. The driver's galvanic isolation provides a high level of protection against voltage transients and ground loops, ensuring reliable operation in noisy environments. Its high drive strength allows it to drive a wide range of power MOSFETs, while its fast switching speeds minimize switching losses and improve power efficiency.

The SI8540-B-FSR also includes several protection features, such as under-voltage lockout (UVLO) and overlapping conduction protection, which help to prevent damage to the MOSFET and ensure reliable operation. The device is available in a small package size, making it suitable for space-constrained applications. The SI8540-B-FSR is a versatile and reliable isolated FET driver that provides a comprehensive solution for driving power MOSFETs in a variety of applications.
