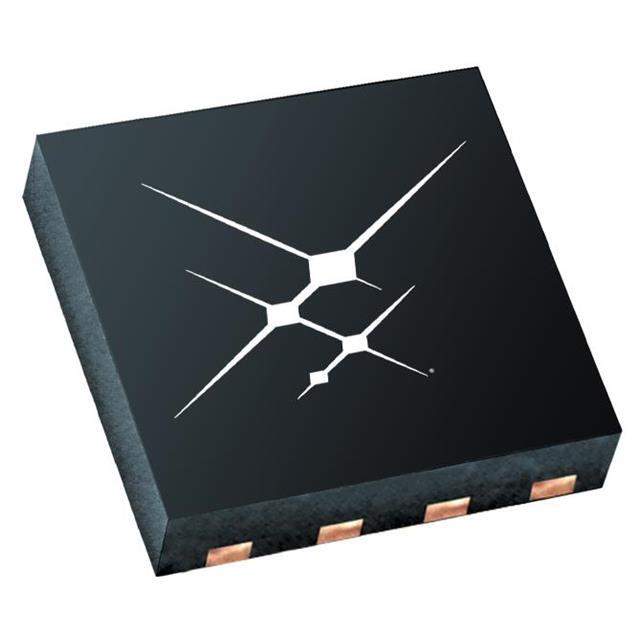

SI8712CD-B-IM Real Image
Same model may have multiple batches, images only for reference.

SI8712CD-B-IM

Part No SI8712CD-B-IM
Manufacturer Skyworks Solutions Inc.
Catalog Digital Isolators
Description DGTL ISO 5000VRMS 1CH GP 8LGA  /  General Purpose Digital Isolator 5000Vrms 1 Channel 1Mbps 20kV/µs CMTI 8-VELGA
Datasheet
SI8712CD-B-IM Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Digital Isolators
Mfr Skyworks Solutions Inc.
Package Tube
Product Status Obsolete
Technology Capacitive Coupling
Type General Purpose
Isolated Power No
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Channel Type Unidirectional
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Min) 20kV/µs
Data Rate 1Mbps
Propagation Delay tpLH / tpHL (Max) 60ns, 60ns
Pulse Width Distortion (Max) 20ns
Rise / Fall Time (Typ) 15ns, 5ns
Voltage - Supply 3V ~ 30V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 8-VELGA
Supplier Device Package 8-LGA (10x12.5)
Other Names 336-2362,SI8712CDBIM
Standard Package 96
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1243911-SI8712CD-B-IM
Ultra Librarian 3D Model Ultra Librarian SI8712CD-B-IM CAD Model

Description

The SI8712CD-B-IM is a general-purpose digital isolator with a unidirectional channel type.

  • Manufacturer: Skyworks Solutions Inc.
  • Channel Type: Unidirectional
  • Voltage Isolation: 5000Vrms
  • Common-Mode Transient Immunity: 20kV/μs
  • Data Rate (Max): 1Mbps
  • Propagation Delay: 60ns
