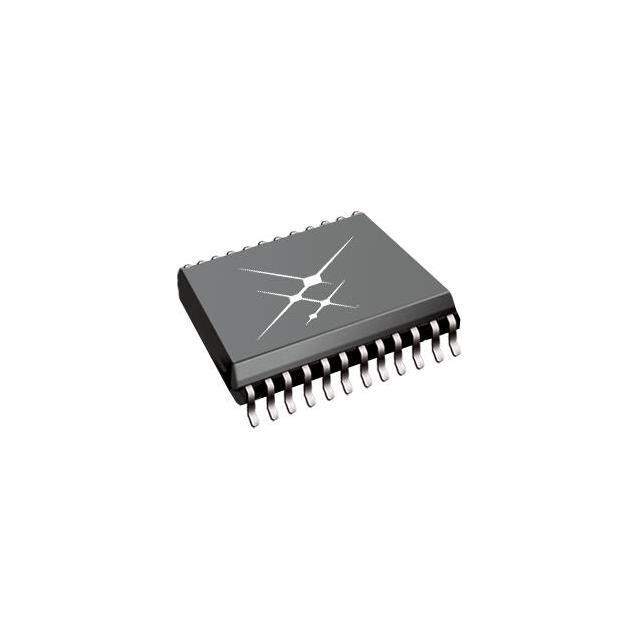

Same model may have multiple batches, images only for reference.

SI88442EC-IS

Name: SI88442EC-IS
Brand: Skyworks Solutions Inc.
SKU: 1244046
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	SI88442EC-IS
Manufacturer	Skyworks Solutions Inc.
Catalog	Digital Isolators
Description	DGTL ISO 5000VRMS 4CH GP 20SOIC / General Purpose Digital Isolator 5000Vrms 4 Channel 100Mbps 40kV/µs CMTI 20-SOIC (0.295", 7.50mm Width)
Datasheet	SI88442EC-IS Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Isolators>Digital Isolators
Mfr	Skyworks Solutions Inc.
Package	Tube
Technology	Capacitive Coupling
Type	General Purpose
Isolated Power	No
Number of Channels	4
Inputs - Side 1/Side 2	2/2
Channel Type	Unidirectional
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	40kV/µs
Data Rate	100Mbps
Propagation Delay tpLH / tpHL (Max)	18ns, 23ns
Pulse Width Distortion (Max)	7ns
Rise / Fall Time (Typ)	2.5ns, 2.5ns
Voltage - Supply	3V ~ 5.5V
Temperature Range - Operating	-40°C ~ 125°C
Mounting	SMD (SMT)
Package / Case	20-SOIC (0.295", 7.50mm Width)
Supplier Device Package	20-SOIC
Base Product Number	SI88442
Standard Package	38
MSL Level	3 (168 Hours)
ECCN	EAR99
HTSUS	8542.39.0001
Win Source Part Number	1244046-SI88442EC-IS
Ultra Librarian 3D Model	Ultra Librarian SI88442EC-IS CAD Model

Alternative Products

Description

The electronic component with Id 1097426 is a digital isolator product from Skyworks Solutions Inc.

Type: General-purpose
Data Rate: 100Mbps
Channels: 4
Packaging: Tube
Standard Package: 38
Voltage Isolation: 5000Vrms
Common Mode Transient Immunity: 40kV/μs
HTSUS: 8542.39.0001
MSL Level: 3 (168 hours)
