Same model may have multiple batches, images only for reference.

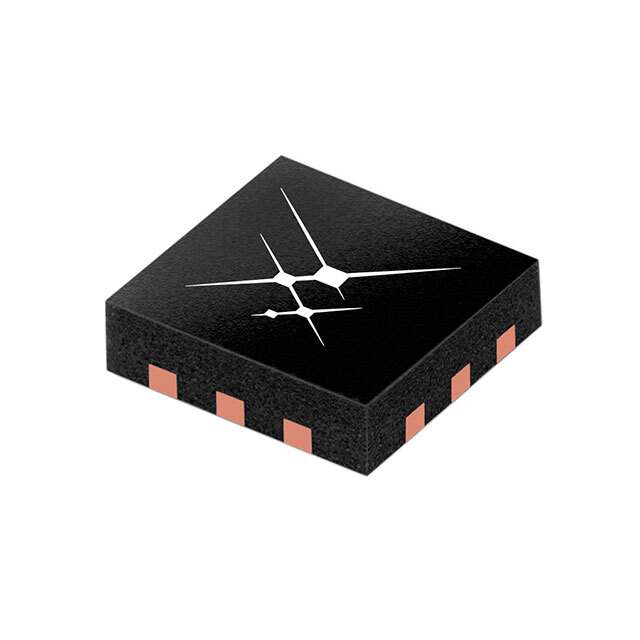

SKY13547-490LF Real Image
Same model may have multiple batches, images only for reference.

SKY13547-490LF

Part No SKY13547-490LF
Manufacturer Skyworks Solutions Inc.
Catalog RF Switches
Description IC RF SWITCH SPDT 1.8GHZ 12QFN / RF Switch IC SPDT 1.8 GHz 75Ohm 12-QFN (2x2)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Switches
Mfr Skyworks Solutions Inc.
Package Tape & Reel
Topology Reflective
Circuit SPDT
Frequency Range 5MHz ~ 1.8GHz
Insertion Loss 0.3dB
Test Frequency 1GHz
P1dB 38dBm
Impedance 75Ohm
Voltage - Supply 2.5V ~ 4.8V
Package / Case 12-UFQFN Exposed Pad
Supplier Device Package 12-QFN (2x2)
Base Product Number SKY13547
Other Names 863-1823-6,863-1823-1,863-1823-2
Standard Package 3,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1235871-SKY13547-490LF
Ultra Librarian 3D Model Ultra Librarian SKY13547-490LF CAD Model

Description

The SKY13547-490LF is an RF switch produced by Skyworks Solutions Inc. It is a high-quality electronic component that belongs to the RF/IF and RFID>RF Switches category.

  • Type: Reflective SPDT switch
  • Frequency Range: 5MHz to 1.8GHz
  • Insertion Loss: 0.3dB
  • P1dB: 38dBm
  • Impedance: 75Ohm
  • Suitable for: cable modems, set-top boxes, and digital televisions
  • Voltage Supply: 2.5V to 4.8V
  • Package: 12-UFQFN exposed pad
