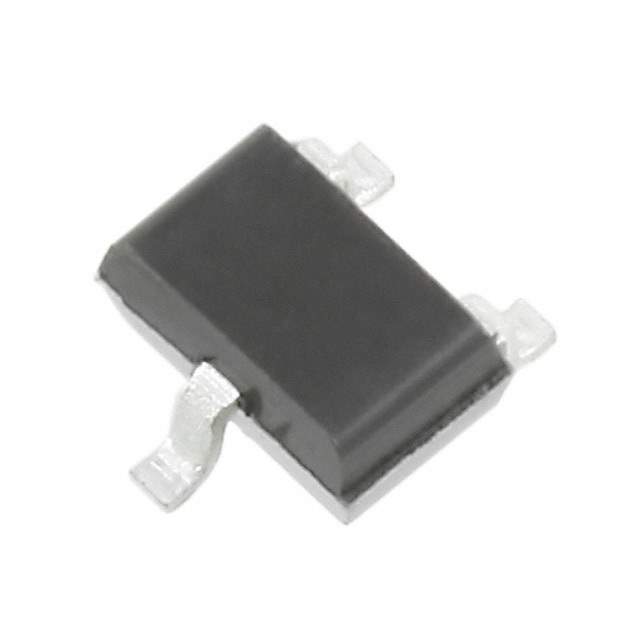

Same model may have multiple batches, images only for reference.

SMP1302-075LF

Name: SMP1302-075LF
Brand: Skyworks Solutions Inc.
SKU: 329476
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	SMP1302-075LF
Manufacturer	Skyworks Solutions Inc.
Catalog	RF Diodes
Description	DIODE RF PIN 200V 250MW SC70
Datasheet	SMP1302-075LF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Skyworks Solutions Inc.
Packaging	Reel - TR
Status	Obsolete(EOL)
Diode Type	PIN - 1 Pair Series Connection
Voltage - Peak Reverse (Max)	200V
Capacitance @ Vr, F	0.3pF @ 30V, 1MHz
Resistance @ If, F	1.5 Ohm @ 100mA, 100MHz
Power Dissipation (Max)	250mW
Temperature Range - Operating	-65°C to 150°C (TA)
Case / Package	SC-70-3
Win Source Part Number	064990-SMP1302-075LF
Popularity	Medium
Supply and Demand Status	Balance
Quantity per package	3k pcs
Ultra Librarian 3D Model	Ultra Librarian SMP1302-075LF CAD Model

Alternative Products

Description

The Skyworks Solutions Inc. PIN - 1 Pair Series Connection diode comes in a SC-70-3 case/package and is mounted on a reel - TR.

Case/Package: SC-70-3
Mounting: Reel - TR
Capacitance: 0.3pF @ 30V, 1MHz
Voltage - Peak Reverse (Max): 200V
Power Dissipation (Max): 250mW
Resistance: 1.5 Ohm @ 100mA, 100MHz
Category: Discrete semiconductor products
Status: Obsolete (EOL)
Operating Temperature: -65°C to 150°C (TA)
Popularity: Medium
Quantity per Package: 3k pcs
