Same model may have multiple batches, images only for reference.

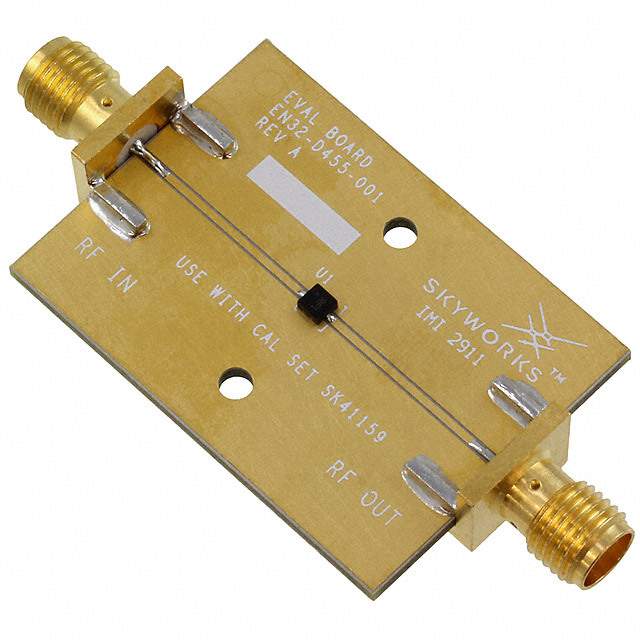

SMP1302-085LF-EVB Real Image
Same model may have multiple batches, images only for reference.

SMP1302-085LF-EVB

Part No SMP1302-085LF-EVB
Manufacturer Skyworks Solutions Inc.
Catalog RF Evaluation and Development Kits, Boards
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers>RF Evaluation and Development Kits, Boards
Mfr Skyworks Solutions Inc.
Package Box
Type PIN Diode
Frequency 10MHz ~ 6GHz
For Use With/Related Products SMP1302-085LF
Supplied Contents Board(s)
Base Product Number SMP1302
Other Names SMP1302085LFEVB,863-1418
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1283391-SMP1302-085LF-EVB
Ultra Librarian 3D Model Ultra Librarian SMP1302-085LF-EVB CAD Model

Description

The SMP1302-085LF-EVB development board from Skyworks Solutions Inc. is designed for use with the SMP1302-085LF PIN diode.

  • Package: Box
  • Includes: Board(s)
  • MSL Level: 1 (unlimited)
  • HTSUS Code: 8473.30.1180
  • Note: The Win Source Part Number for this product is 1283391-SMP1302-085LF-EVB.
