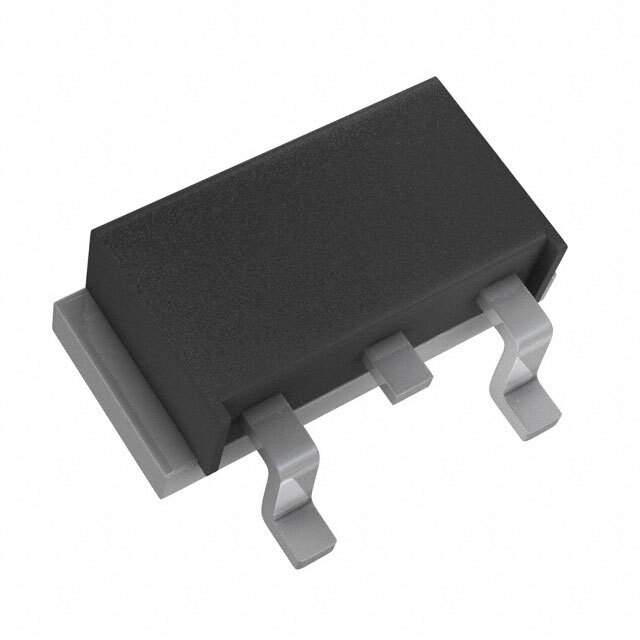

80CNQ045SL Real Image
Same model may have multiple batches, images only for reference.

80CNQ045SL

Part No 80CNQ045SL
Manufacturer SMC Diode Solutions
Catalog Diodes, Rectifiers - Arrays
Description DIODE SCHOTTKY 45V 40A PRM2-SL
Datasheet
80CNQ045SL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer SMC Diode Solutions
Packaging Bulk
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 45V
Current - Average Rectified (Io) (per Diode) 40A
Voltage - Forward (Vf) (Maximum) @ If 660mV @ 40A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 5mA @ 45V
Operating Temperature - Junction -55°C ~ 150°C
Mounting SMD
Package PRM2-SL
Manufacturer Package PRM2-SL
Win Source Part Number 766259-80CNQ045SL
Popularity Medium
Supply and Demand Status Balance
Family Name 80CNQ045
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 80CNQ045SL CAD Model

Description

The 80CNQ045SL is a Schottky diode designed and manufactured by SMC Diode Solutions.

  • Package: PRM2-SL
  • Mounting Type: SMD
  • Fast Recovery: 200mA (Io)
  • Diode Configuration: 1 pair common cathode
  • Current-Average Rectified (Io) (per diode): 40A
  • Voltage-Forward (Vf) (maximum) @ If: 660mV @ 40A
  • Voltage-DC Reverse (Vr) (maximum): 45V
  • ECCN: EAR99
  • Supply and Demand Status: Balanced
