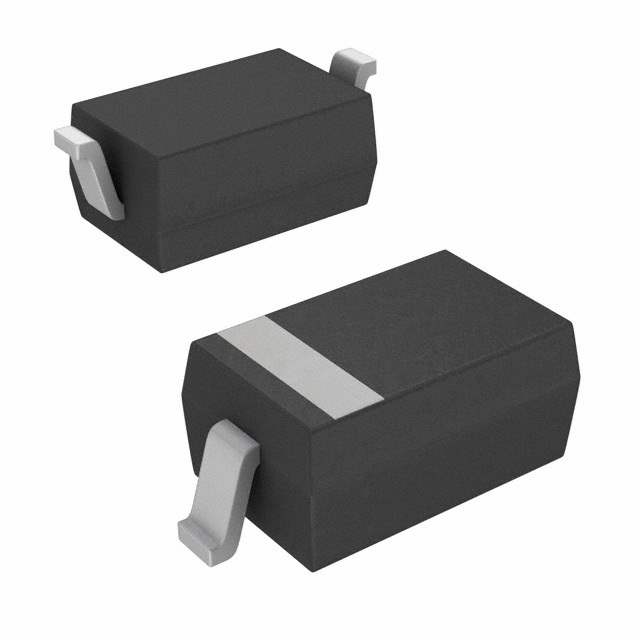

BAV19W Real Image
Same model may have multiple batches, images only for reference.

BAV19W

Part No BAV19W
Manufacturer SMC Diode Solutions
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 100V 200MA SOD123 / Diode 100 V 200mA Surface Mount SOD-123
Datasheet
BAV19W Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr SMC Diode Solutions
Package Tape & Reel
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) 200mA
Voltage - Forward (Vf) (Max) @ If 1 V @ 100 mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 50 ns
Current - Reverse Leakage @ Vr 100 nA @ 100 V
Capacitance @ Vr, F 5pF @ 0V, 1MHz
Mounting Type Surface Mount
Package / Case SOD-123
Supplier Device Package SOD-123
Operating Temperature - Junction -65°C ~ 150°C
Base Product Number BAV19
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 568986-BAV19W
Ultra Librarian 3D Model Ultra Librarian BAV19W CAD Model

Description

The 568986-BAV19W is a single diode rectifier designed for small signal applications.

  • Maximum DC Reverse Voltage: 100V
  • Average Rectified Current: 200mA
  • Forward Voltage: 1V @ 100mA
  • Reverse Recovery Time: 50ns
  • Current Leakage: 100nA @ 100V
  • Capacitance: 5pF @ 0V, 1MHz
  • Mounting Type: Surface Mount Device
  • Package: SOD-123
  • Series: Standard Technology
  • Supplier: SMC Diode Solutions
  • Status: Active
