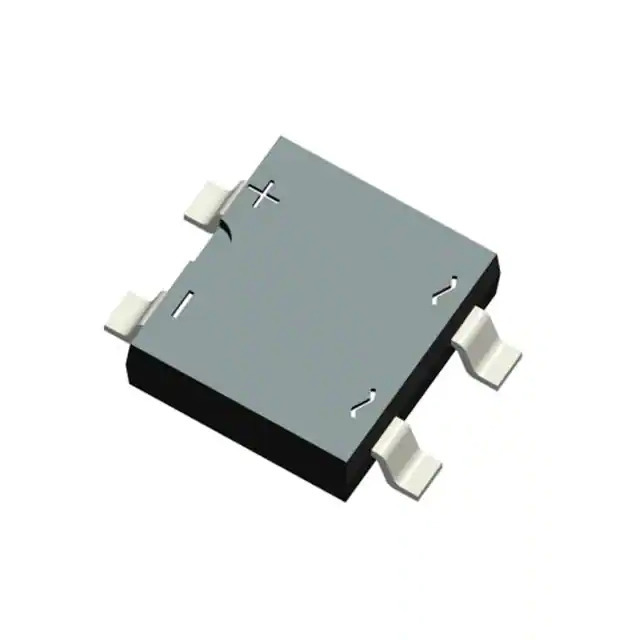

MB05F SMC Diode Solutions
Same model may have multiple batches, images only for reference.

MB05F

Part No MB05F
Manufacturer SMC Diode Solutions
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 50V 500MA MBF
Datasheet
MB05F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr SMC Diode Solutions
Series -
Package Tape & Reel
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 50 V
Current - Average Rectified (Io) 500 mA
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 800 mA
Current - Reverse Leakage @ Vr 5 µA @ 50 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 4-SMD, Gull Wing
Supplier Device Package MBF
Base Product Number MB05
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 1367919-MB05F
Ultra Librarian 3D Model Ultra Librarian MB05F CAD Model

Description

The 1367919-MB05F is a bridge rectifier diode from SMC Diode Solutions.

  • Product Name: 1367919-MB05F
  • Manufacturer: SMC Diode Solutions
  • Series: MB05
  • Application: Surface Mount
  • Maximum Forward Voltage @ 800mA: 1.1V
  • Maximum Reverse Leakage Current @ 50V: 5µA
  • Type: Single-phase
  • Maximum Peak Reverse Voltage: 50V
  • Operating Temperature Range: -55°C to 150°C
  • Package: 4-SMD, Gull Wing
  • Packaging: Tape and Reel
  • Compliance: RoHS
