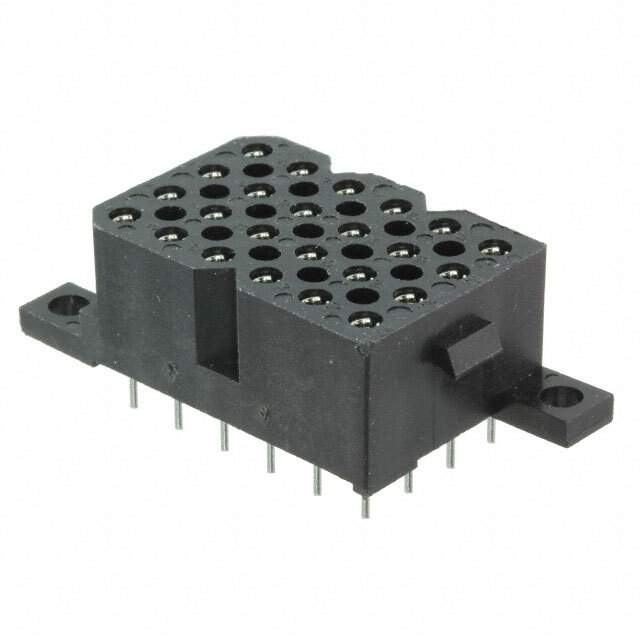

Same model may have multiple batches, images only for reference.

SMS24RE3TR29

Name: SMS24RE3TR29
Brand: Souriau Connection Technology
SKU: 436353
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SMS24RE3TR29
Manufacturer	Souriau Connection Technology
Catalog	Rectangular Connectors
Description	SMS STRGHT BRDMNT FML CONS
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Souriau
Packaging	Bulk
Status	Active
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	24
Number of Positions Loaded	All
Pitch - Mating	0.200" (5.08mm)
Number of Rows	6
Row Spacing - Mating	0.200" (5.08mm)
Mounting	Through Hole
Termination	Solder
Fastening Type	Locking Ramp
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	118.1μin (3.00μm)
Insulation Color	Black
Insulation Height	0.528" (13.40mm)
Contact Length - Post	0.173" (4.40mm)
Temperature Range - Operating	-55°C to 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Ingress Protection	IP40
Features	Mounting Flange
Current Rating	5A
Insulation Material	Thermoplastic, Glass Filled
Contact Shape	Circular
Contact Finish Thickness - Post	118.1μin (3.00μm)
Win Source Part Number	1021684-SMS24RE3TR29
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian SMS24RE3TR29 CAD Model

Alternative Products

Description

The Souriau 1021684-SMS24RE3TR29 is a female socket connector that features a mounting flange.

Positions: 24
Style: Board to board or cable
Connector Type: Receptacle
Fastening Type: Locking ramp
Contact Finish (Mating): Tin
Contact Finish Thickness (Mating): 118.1μin (3.00μm)
Contact Finish (Post): Tin
Contact Finish Thickness (Post): 118.1μin (3.00μm)
Pitch-Mating: 0.200" (5.08mm)
Row Spacing-Mating: 0.200" (5.08mm)
Mounting Type: Through-hole
Insulation Height: 0.528" (13.40mm)
Supply and Demand: Balanced
