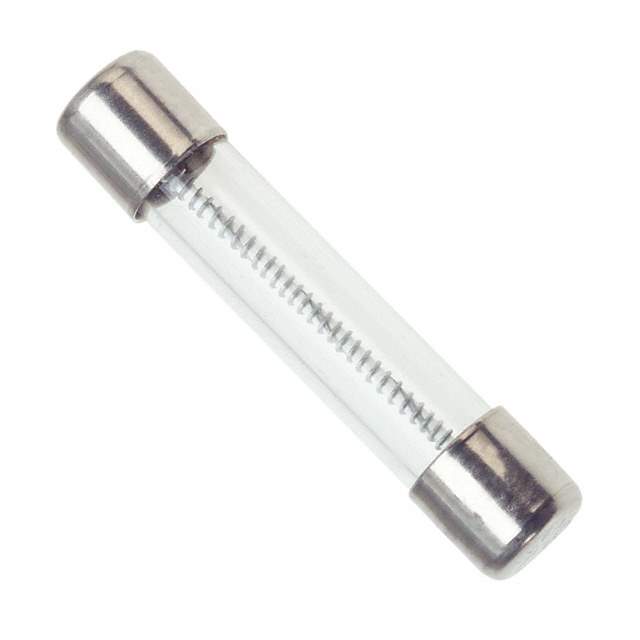

0313020.HXP Real Image
Same model may have multiple batches, images only for reference.

0313020.HXP

Part No 0313020.HXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE GLASS 20A 32VAC 3AB 3AG / 20 A 32 V AC DC Fuse Cartridge, Glass Holder 3AB, 3AG, 1/4" x 1-1/4"
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Littelfuse Inc.
Series 313
Package Bulk
Mounting Type Holder
Fuse Type Cartridge, Glass
Current Rating (Amps) 20 A
Voltage Rating - AC 32 V
Response Time Slow Blow
Package / Case 3AB, 3AG, 1/4" x 1-1/4"
Breaking Capacity @ Rated Voltage 300A
Melting I2t 9560
Approval Agency UL
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.250" Dia x 1.250" L (6.35mm x 31.75mm)
DC Cold Resistance 0.0022 Ohms
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0020
Other Names 313020P,313020,-1024-0313020.HXP,0313020HXP,313020.P,F2559
Standard Package 100
Win Source Part Number 1147162-0313020.HXP
Ultra Librarian 3D Model Ultra Librarian 0313020.HXP CAD Model

Description

The Littelfuse Inc. 0313020.HXP is a slow blow glass cartridge fuse with a voltage rating of 32 V and a current rating of 20 A.

  • Voltage Rating: 32 V
  • Current Rating: 20 A
  • Breaking Capacity: 300A
  • Melting I2t: 9560
  • Series: 313
  • Military Standard: Not applicable
  • RoHS Compliant: Yes
  • MSL Level: 1 (Unlimited)
  • Fuse Type: Cartridge
  • Dimensions: 0.250" Dia x 1.250" L (6.35mm x 31.75mm)
