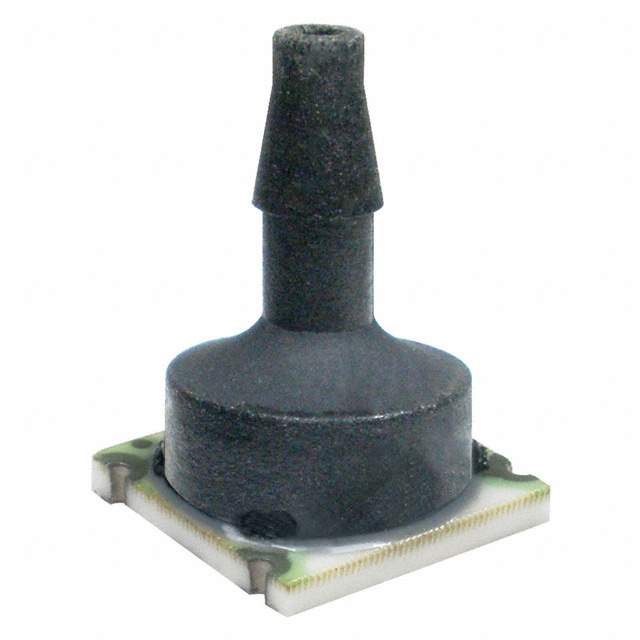

NBPLANN100PGUNV Real Image
Same model may have multiple batches, images only for reference.

NBPLANN100PGUNV

Part No NBPLANN100PGUNV
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR 100 PSIG UNAMPLIFIED SMD / Pressure Sensor 0psi to 100psi Gage 6-Pin SMT
Datasheet
NBPLANN100PGUNV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Honeywell Sensing and Productivity Solutions
Series NBP
Pressure Type Vented Gauge
Operating Pressure 100 PSI (689.48 kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 86 mV (5V)
Accuracy ±0.25%
Operating Supply Voltage 1.8 V ~ 12 V
Port Size Male - 0.11" (2.74mm) Tube
Port Style Barbed
Termination Style Surface Mount
Maximum Pressure 240 PSI (1654.74 kPa)
Operating Temperature Range -40°C ~ 125°C
Package 6-SMD, No Lead, Top Port
Win Source Part Number 790541-NBPLANN100PGUNV
Popularity Medium
Supply and Demand Status Limited
Family Name NBPLANN100PG
Introduction Date June 29, 2012
ECCN EAR99
Country of Origin China
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian NBPLANN100PGUNV CAD Model

Description

The Honeywell Sensing and Productivity Solutions NBPLANN100PGUNV pressure sensor is a high-precision and reliable option for various applications.

  • Operating Pressure: 100 PSI (689.48 kPa)
  • Accuracy: ±0.25%
  • Package: 6-SMD, No Lead, Top Port
  • Popularity: Medium
  • ECCN: EAR99
  • HTSUS: N/A
  • Supply and Demand Status: Limited
  • Estimated EOL Date: 2031
