Same model may have multiple batches, images only for reference.

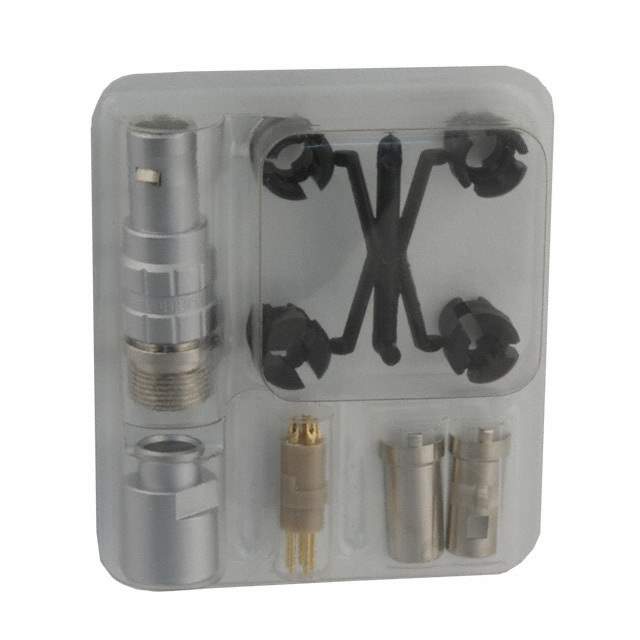

JBXFD0G05MSSDSMR Real Image
Same model may have multiple batches, images only for reference.

JBXFD0G05MSSDSMR

Part No JBXFD0G05MSSDSMR
Manufacturer Souriau-Sunbank by Eaton
Catalog Circular Connectors
Description CONN PLUG MALE 5P GOLD SLDR CUP / 5 Position Circular Connector Plug, Male Pins Solder Cup
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr Souriau-Sunbank by Eaton
Series JBX
Package Bulk
Connector Type Plug, Male Pins
Number of Positions 5
Shell Size - Insert 0
Mounting Type Free Hanging (In-Line)
Termination Solder Cup
Fastening Type Push-Pull
Orientation G
Primary Material Metal
Shell Material Brass
Shell Finish Chrome over Nickel
Contact Finish - Mating Gold
Color Silver
Ingress Protection IP40
Material Flammability Rating UL94 V-0
Features Backshell, Boot Adapter
Shielding Shielded
Current Rating (Amps) 6.5A
Voltage Rating 400V
Temperature Range - Operating -40°C ~ 125°C
Backshell Material, Plating Brass, Chrome over Nickel
Contact Finish Thickness - Mating 19.7µin (0.50µm)
Insert Material Polyetheretherketone (PEEK)
Applications Industrial, Instrumentation, Medical, Telecommunications
Base Product Number JBXFD0G
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Other Names SOU1547
Standard Package 25
Win Source Part Number 1231037-JBXFD0G05MSSDSMR
Ultra Librarian 3D Model Ultra Librarian JBXFD0G05MSSDSMR CAD Model

Description

The Souriau-Sunbank by Eaton JBXFD0G05MSSDSMR Circular Connector is a high-quality product that is perfect for use in different applications such as industrial, instrumentation, medical, and telecommunications.

  • Features: Backshell, Boot Adapter, Shielded Shielding
  • Category: Connectors, Interconnects
  • Popularity: High
  • Packaging: Bulk
  • Standard Package: 25
