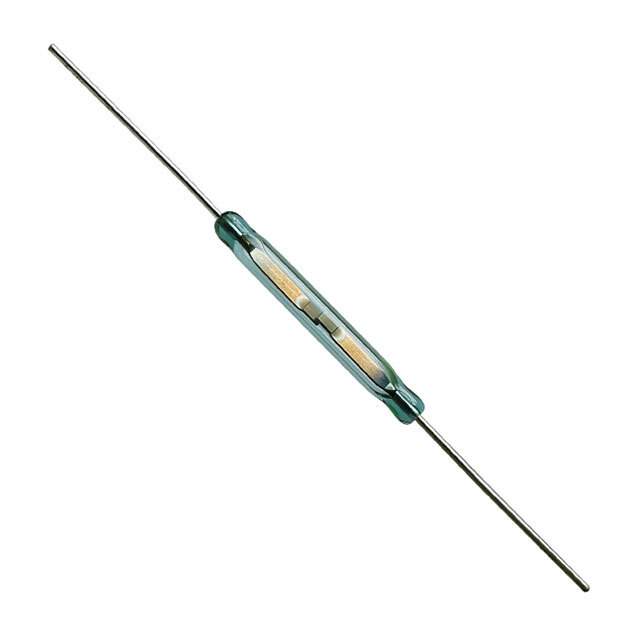

ORD 229/20-25 AT Real Image
Same model may have multiple batches, images only for reference.

ORD 229/20-25 AT

Part No ORD 229/20-25 AT
Manufacturer Standex-Meder Electronics
Catalog Magnetic, Reed Switches
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Magnetic, Reed Switches
Mfr Standex-Meder Electronics
Series ORD
Package Bulk
Type Glass Body Reed
Circuit SPST-NO
Operate Range 20 ~ 25AT
Current - Switching 500mA (AC), 700mA (DC)
Voltage - Switching AC 300 V
Voltage - Switching DC 350 V
Power - Rated 50W
Operate Time 0.6 ms
Release Time 0.05 ms
Mounting Type Through Hole
Termination Style Axial
Length - Overall 2.181" (55.40mm)
Size - Body 0.108" Dia x 0.827" L (2.75mm x 21.00mm)
Capacitance 0.5 pF
Current - Carry 2.5A (AC/DC)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1315726-ORD 229/20-25 AT
Ultra Librarian 3D Model Ultra Librarian ORD 229/20-25 AT CAD Model

Description

The ORD 229/20-25 AT is a glass body reed switch with a circuit of SPST-NO and an operate range of 20 ~ 25AT.

  • Circuit: SPST-NO
  • Operate Range: 20 ~ 25AT
  • Release Time: 0.05 ms
  • Operate Time: 0.6 ms
  • Maximum Power Rating: 50W
  • Current Switching: 500mA (AC), 700mA (DC)
  • Mounting Type: Through Hole
  • Length: 2.181" (55.40mm)
  • Manufacturer: Standex-Meder Electronics
