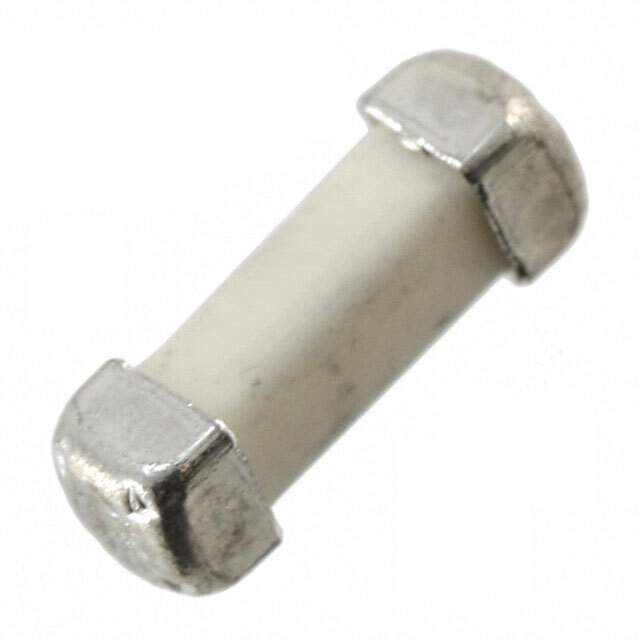

0678-9200-M2 Real Image
Same model may have multiple batches, images only for reference.

0678-9200-M2

Part No 0678-9200-M2
Manufacturer Bel Fuse Inc.
Catalog Fuses
Description Fuse Chip Medium Time Delay Acting 20A 250V SMD Solder Pad 3812 Ceramic T/R CE/cULus
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Approvals CE, cULus, cURus
Mounting SMD (SMT)
Termination SMD/SMT
Current Rating 20 A
Depth 3.1 mm
Height 3.175 mm
Housing Material Ceramic
Lead Free Yes
Length 9.906 mm
Maximum Operating Temperature 125 °C
Min Operating Temperature -55 °C
Mount Surface Mount
Number of Pins 2
Power Dissipation 1.8 W
Resistance 2.5 mΩ
RoHS Compliant
Voltage Rating (AC) 250 V
Voltage Rating (DC) 72 V
Width 3.048 mm
Win Source Part Number 1033847-0678-9200-M2
Categories Fuses
Manufacturer Bel Fuse Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 0678-9200-M2 CAD Model

Description

The Bel Fuse Inc. Fuse is a high-quality electronic component that is designed for use in a wide range of applications.

  • Mounting Style: Surface Mount
  • Category: Fuses
  • Current Rating: 20 A
  • Resistance: 2.5 mΩ
  • Lead-Free: Yes
  • RoHS Compliant: Yes
  • Maximum Operating Temperature: 125 °C
  • Minimum Operating Temperature: -55 °C
  • HTSUS: 8504.31.2000
