STMicroelectronics 2STC5200 Power Transistor

The 2STC5200 is a high-power NPN transistor designed and manufactured by the industry-leading semiconductor company, STMicroelectronics. This transistor is widely used in high-fidelity audio amplification systems and various power switching applications due to its exceptional power handling and performance characteristics.

With a collector-emitter voltage (Vceo) of up to 230V and collector current (Ic) capability of up to 15A, the 2STC5200 can handle significant power levels, making it suitable for demanding applications. The device also boasts a high frequency response with a transition frequency (fT) of 30MHz, which ensures excellent performance in audio amplification applications.

The 2STC5200 is designed with state-of-the-art silicon technology, which provides it with a high safe operating area (SOA) and enables it to withstand rugged operating conditions. This makes the transistor highly reliable in environments with high surge currents and voltage spikes.

One of the key features of the 2STC5200 is its complementary PNP type, the 2STA1943. When paired together, these transistors form an ideal solution for complementary push-pull configurations, which are commonly used in high-power audio amplifiers to achieve a balanced and distortion-free output.

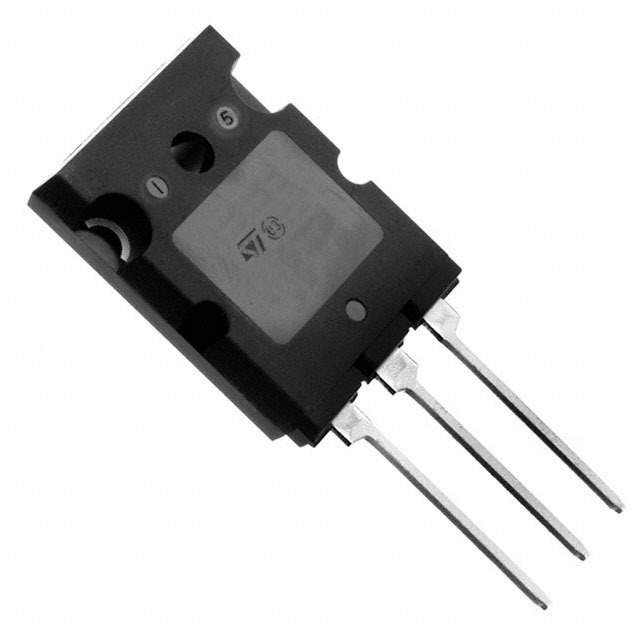

STMicroelectronics has packaged the 2STC5200 in a TO-247 package, known for its excellent thermal performance. This package allows for efficient heat dissipation, which is critical in maintaining the longevity and stability of the transistor when operating at high power levels.

The 2STC5200 is also characterized by its low collector-emitter saturation voltage (Vcesat), which translates to reduced power dissipation and improved efficiency in the application. This feature is particularly beneficial in power amplifiers where efficiency is a key concern.

In summary, the STMicroelectronics 2STC5200 is a robust and high-performing power transistor that is well-suited for a variety of demanding applications, particularly in the audio amplification and power switching domains. Its excellent electrical characteristics and thermal performance make it a reliable choice for engineers and designers looking for quality and durability.
