The BTA20-700BWRG is a robust and versatile triac from STMicroelectronics, designed to control AC power in a wide range of applications. This semiconductor device is capable of switching and controlling high-current loads up to 20A, with a maximum voltage of 700V, making it an excellent choice for managing AC power in household appliances, office machines, and industrial automation systems.

Key Features

• High Current Rating: With a current handling capacity of 20A, the BTA20-700BWRG can manage significant power levels, suitable for various high-power applications.
• High Voltage Capability: The device is rated for a maximum repetitive peak off-state voltage (VDRM) of 700V, providing a wide operating margin for applications involving high voltage levels.
• Gate Trigger Voltage: A low gate trigger voltage (VGT) ensures the triac can be easily driven by microcontrollers or other low-power gate trigger circuits.
• Snubberless Technology: This technology allows for higher performance and reliability by minimizing the need for external snubber circuits to protect against voltage transients.
• Thermal and Electrical Stability: The BTA20-700BWRG is designed to withstand thermal variations and provides stable electrical characteristics over its entire operating range.

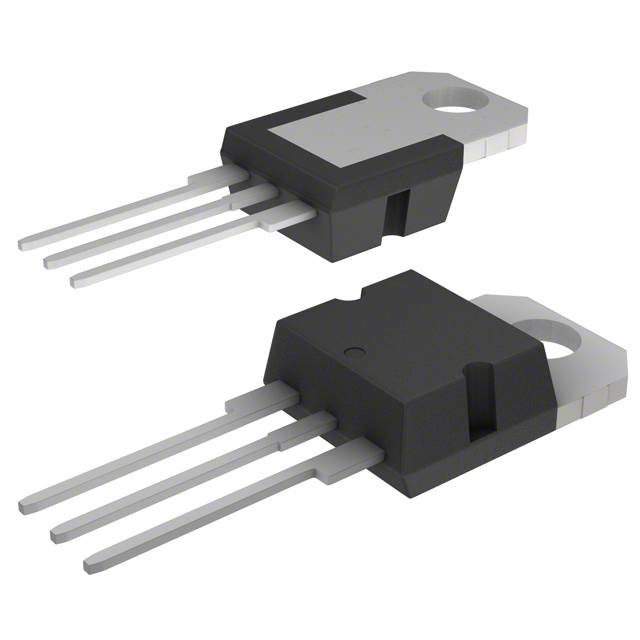

• Insulated Package: The triac comes in an insulated tab TO-220AB package, ensuring easy mounting and safe insulation from other components and the heat sink.

Applications

The BTA20-700BWRG is well-suited for a variety of AC power switching applications. Its robustness and high power handling capability make it ideal for:

• Motor control in household appliances like washing machines and air conditioners
• Lighting dimmer circuits and electric heater control
• Industrial process control and automation systems
• AC solid-state relays
• Speed control for power tools and kitchen appliances

Conclusion

The BTA20-700BWRG from STMicroelectronics is a powerful and reliable triac, perfect for designers looking to control AC power efficiently and effectively in their applications. With its high current and voltage capabilities, coupled with snubberless technology, it offers a high-performance solution for a wide array of power control challenges.
