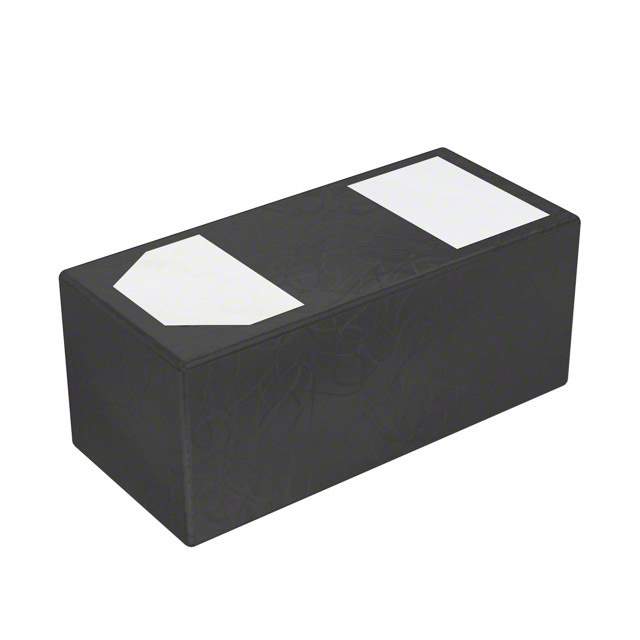

ESDAULC6-1U2 Ultra-Low Capacitance ESD Protection from STMicroelectronics

The ESDAULC6-1U2 is a state-of-the-art ESD protection device designed and manufactured by STMicroelectronics, a global semiconductor leader known for its innovative and reliable products. This robust transient voltage suppressor is specifically engineered to safeguard high-speed data lines and other sensitive circuits from electrostatic discharge (ESD) threats.

Key Features

• Ultra-Low Capacitance: With an extremely low capacitance of only 0.7 pF, the ESDAULC6-1U2 is ideal for protecting high-speed data lines without compromising signal integrity.
• High ESD Protection: This device provides a high level of protection against ESD, exceeding the IEC 61000-4-2 level 4 standard, withstanding ESD strikes up to 15 kV (air discharge) and 8 kV (contact discharge).
• Low Clamping Voltage: The low clamping voltage ensures that even the most sensitive components are effectively shielded from the harmful effects of voltage spikes.
• Small Package Size: The ESDAULC6-1U2 comes in a compact SOT23-6L package, which is highly suitable for space-constrained applications.
• Bi-directional Protection: This device provides bi-directional protection, ensuring that both lines are secured against ESD strikes.

Applications

The ESDAULC6-1U2 is versatile and can be used in a variety of applications that require high-speed data line protection, including:

• USB 2.0 and 3.0 interfaces
• HDMI and DisplayPort interfaces
• Digital Visual Interface (DVI)
• Thunderbolt interfaces
• Mobile phones and other portable devices

Why Choose the ESDAULC6-1U2?

STMicroelectronics' ESDAULC6-1U2 is a top choice for engineers and designers who need a reliable ESD protection solution that doesn't compromise on performance. Its ultra-low capacitance and high ESD protection level make it an excellent choice for protecting high-speed digital interfaces. Additionally, the small package size and bi-directional protection offer design flexibility and ease of integration into existing and new projects. By choosing the ESDAULC6-1U2, you ensure your products are well-protected against the common and potentially destructive effects of electrostatic discharge.
