The L78L15ACZ is a fixed output voltage regulator designed and manufactured by STMicroelectronics, a leader in the semiconductor industry. This voltage regulator is part of the L78L series and is specifically engineered to provide a stable 15V output voltage. It is an ideal choice for small-scale electronic projects and applications requiring a reliable power management solution.

Key Features

• Output Voltage: Precisely regulated 15V output to ensure consistent performance for sensitive electronic components.
• Output Current: Capable of delivering up to 100mA of output current, suitable for low power applications.
• Low Dropout Voltage: The L78L15ACZ operates with a low dropout voltage, making it efficient for systems with a narrow input-to-output voltage differential.
• Thermal Overload Protection: Built-in thermal shutdown feature prevents damage from overheating, enhancing the longevity of the device.
• Short Circuit Protection: Integrated short circuit protection safeguards the regulator and the connected load from potential damage due to short circuits.

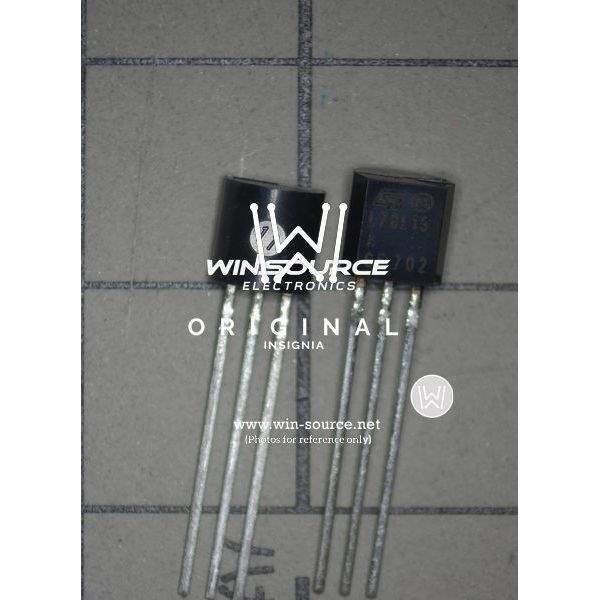

• Package Type: Available in a TO-92 package, which is widely used and easy to integrate into various circuit designs.
• No External Components Required: The L78L15ACZ is designed to work without the need for external components, simplifying design and reducing overall system cost.

Applications

The L78L15ACZ voltage regulator is versatile and can be used in a wide range of applications, including:

• Consumer electronics
• Small home appliances
• Personal computers and peripherals
• Power supplies
• Battery-powered devices

With its reliable performance and robust protection features, the L78L15ACZ from STMicroelectronics is an excellent choice for designers and hobbyists seeking an efficient and straightforward solution for their 15V power supply needs.
