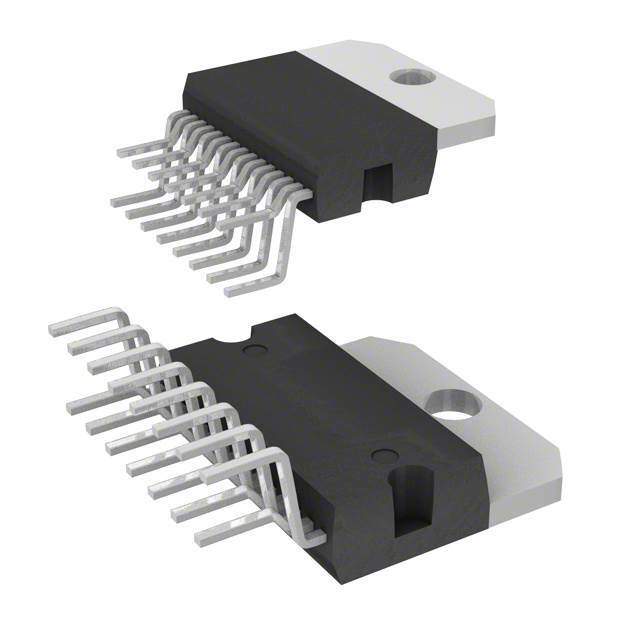

The L9822E from STMicroelectronics is a sophisticated octal serial solenoid driver IC, designed to manage a variety of inductive loads with high efficiency and precision. This integrated circuit is particularly well-suited for automotive applications, but its versatility allows it to be used in a range of industrial systems as well.

Key Features

• Output Voltage Clamping: Each of the eight outputs of the L9822E is protected by an energy clamp, safeguarding the device against the high-voltage transients that can occur when driving inductive loads.
• Serial Data Control: The L9822E utilizes a Serial Peripheral Interface (SPI) for control, allowing for the efficient management of the eight low-side driver outputs through serial communication.
• Output Current Limitation: To prevent damage to the system, the L9822E features built-in output current limitation, ensuring that the device operates within safe parameters.
• Thermal Shutdown: The thermal shutdown feature protects the IC from overheating, enhancing the reliability and longevity of the system.
• Status Feedback: Diagnostic feedback is available through the serial interface, providing real-time information on open-load, short-circuit, and over-temperature conditions.

Applications

The L9822E is particularly adept at handling the demands of automotive environments, where it can be used to drive a variety of solenoids, relays, and other actuators. Its robust design also makes it suitable for an array of industrial applications, where precision and reliability are paramount.

Technical Specifications

• Supply Voltage Range: 5.5 V to 50 V
• Output Current: Up to 0.9 A per channel
• Operating Temperature Range: -40°C to 150°C
• Packaging: SO-20

Overall, the L9822E is a powerful solution for driving multiple inductive loads with control and safety. Its combination of features ensures that it can meet the stringent requirements of a wide range of applications, making it a valuable component in any designer's toolkit.
