STMicroelectronics L9958SB - Motor Driver Overview

The L9958SB from STMicroelectronics is a sophisticated motor driver integrated circuit (IC) designed for the precise control of DC motors used in automotive applications. This powerful IC is part of ST's extensive motor driver portfolio and offers a range of features that make it an ideal choice for driving motors in environments that demand high reliability and performance.

Key Features

• Voltage Range: The L9958SB operates over a wide voltage range from 5.5V to 28V, accommodating the electrical systems of most vehicles.
• Output Current: It is capable of delivering an output current of up to 5A, making it suitable for a variety of motor-driven applications.
• Protection Mechanisms: The device includes multiple protection features such as overcurrent protection, thermal shutdown, and under-voltage shutdown, ensuring the safety and longevity of the motor and the driver IC.
• Diagnostic Functions: Integrated diagnostic functions provide feedback on the status of the motor and the driver, which is crucial for maintaining optimal performance and troubleshooting issues.
• Control Flexibility: With PWM (Pulse Width Modulation) control, the L9958SB allows for precise speed regulation and torque control of the motor.

Applications

The L9958SB is primarily used in automotive applications where reliable motor control is essential. It is particularly suitable for driving brushed DC motors in applications such as fuel pumps, HVAC blowers, engine cooling fans, and other actuators within the vehicle.

Design and Integration

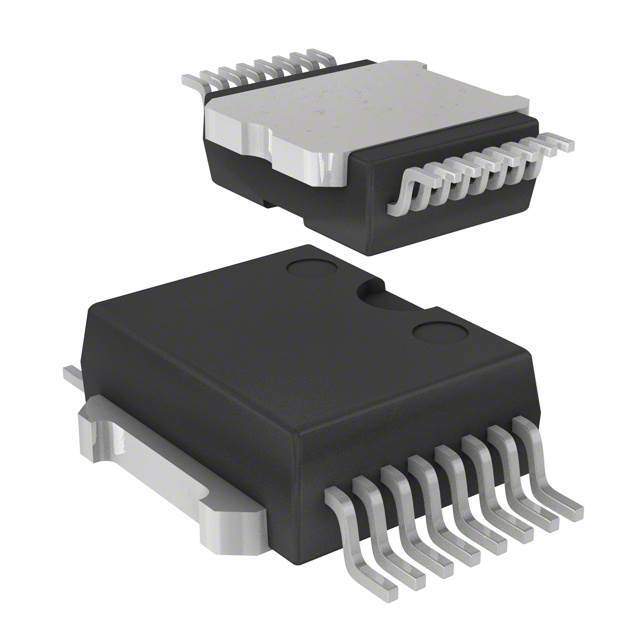

The compact design of the L9958SB, available in a PowerSSO-24 package, facilitates easy integration into automotive systems with limited space. Its robust design ensures that it can withstand the harsh conditions typically found in automotive environments, including vibration, temperature fluctuations, and electromagnetic interference.

With its comprehensive feature set and strong focus on safety and reliability, the L9958SB motor driver from STMicroelectronics stands out as a superior solution for sophisticated automotive motor control applications.
