Product Overview: LD39020TPU32R by STMicroelectronics

The LD39020TPU32R is a high-performance, low-dropout voltage regulator (LDO) designed and manufactured by STMicroelectronics, a leader in the semiconductor industry. This compact and efficient LDO is ideal for applications requiring a stable and reliable power supply, with a focus on energy-saving and space-critical designs.

With an output current capability of up to 200 mA, the LD39020TPU32R is well-suited for powering a wide range of devices, from microcontrollers and digital signal processors to RF applications. Its low dropout voltage ensures that it can provide a stable output even when the input voltage is close to the output voltage, making it particularly useful in battery-powered applications where maximizing battery life is crucial.

The device operates over a broad input voltage range from 1.5V to 5.5V, which allows for flexibility in various system designs. Furthermore, it boasts an outstanding transient response, which is essential for applications sensitive to voltage fluctuations.

The LD39020TPU32R features several protective functions that safeguard the device and the load from abnormal operating conditions. These include thermal shutdown, which prevents damage from overheating, and short-circuit protection, which limits the current during fault conditions. Additionally, the LDO has an enable function that provides on/off control, enabling further power savings by shutting down the regulator when it's not needed.

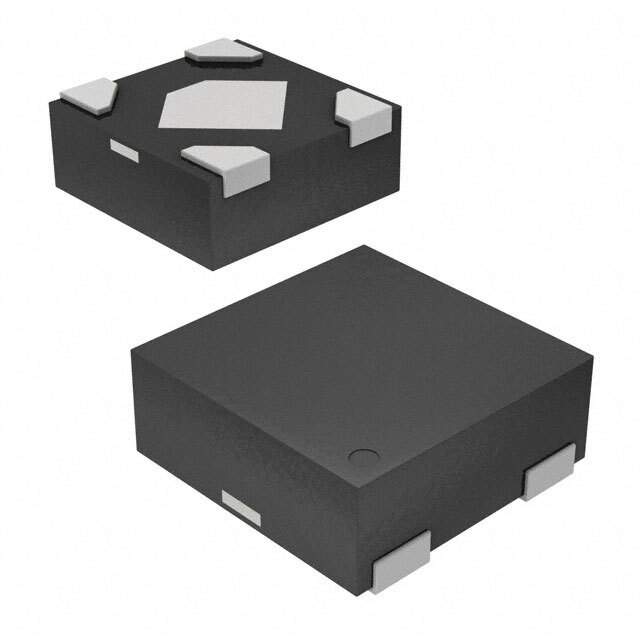

Housed in an ultra-small, flip-chip package, the LD39020TPU32R is designed for space-constrained applications. Its small footprint does not compromise on thermal performance, ensuring reliable operation across its specified temperature range.

In summary, the LD39020TPU32R from STMicroelectronics is a versatile and robust LDO voltage regulator that combines high performance with a compact form factor. Its features make it an excellent choice for designers looking to enhance the efficiency and reliability of their power management solutions.
