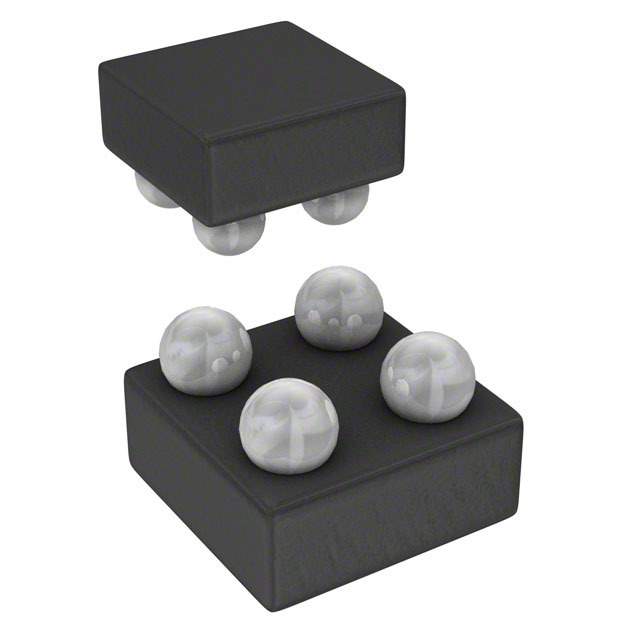

STMicroelectronics LD39130SJ10R Low-Dropout Regulator

The LD39130SJ10R is a high-performance, low-dropout linear voltage regulator from STMicroelectronics, designed to deliver a precise voltage supply for sensitive electronics. This compact and efficient power management solution is ideal for a wide range of applications, including portable devices, microcontrollers, and other digital circuits that require a stable and reliable power source.

Key Features

• Output Voltage: The LD39130SJ10R provides a fixed output voltage of 1.0V, suitable for powering advanced digital ICs that operate at low voltages.
• High Accuracy: This regulator offers excellent load and line regulation, ensuring the output voltage remains constant even with variations in input voltage or load conditions.
• Low Dropout: The low dropout voltage allows the regulator to continue providing a stable output even when the input voltage is very close to the output voltage, enhancing efficiency and battery life in portable applications.
• Current Capability: With the ability to deliver up to 300mA of continuous output current, it is well-suited for a variety of low-power devices and applications.
• Thermal Protection: The LD39130SJ10R includes thermal shutdown protection, safeguarding the device and the system from damage due to excessive heat.
• Package: The device comes in a highly compact SOT-323-5L package, making it ideal for space-constrained applications.

Applications

The versatility of the LD39130SJ10R makes it a perfect choice for a broad array of applications, including but not limited to:

• Mobile phones and PDAs
• Portable media players
• Wireless LAN devices
• GPS receivers
• Microcontroller power supply

Conclusion

The LD39130SJ10R from STMicroelectronics is a robust and reliable LDO voltage regulator that offers high accuracy, low dropout, and thermal protection features. Its small footprint and high efficiency make it an excellent choice for designers looking to optimize power management in compact, battery-operated devices. With its fixed 1.0V output and the ability to supply up to 300mA, it is a highly versatile component that can enhance the performance and reliability of a wide range of electronic products.
