LD49100PURY - Low Dropout Voltage Regulator by STMicroelectronics

The LD49100PURY is a high-performance, low dropout voltage regulator designed by STMicroelectronics, tailored to deliver a stable and precise voltage supply. This component is well-suited for applications that demand low power consumption and minimal space, making it an ideal choice for portable and battery-powered devices.

With an output current capability of 1 A, the LD49100PURY ensures a reliable power supply for a variety of electronic circuits. It boasts an excellent transient response, which is critical for maintaining voltage stability during rapid changes in load. The device operates over a wide input voltage range from 1.5 V to 5.5 V, allowing it to support a broad spectrum of applications and providing designers with flexibility in their system power planning.

One of the key features of the LD49100PURY is its low dropout voltage, which enhances the efficiency of the system by allowing operations closer to the battery end-of-life, thereby extending battery life. This is particularly beneficial in portable devices where maximizing battery duration is crucial.

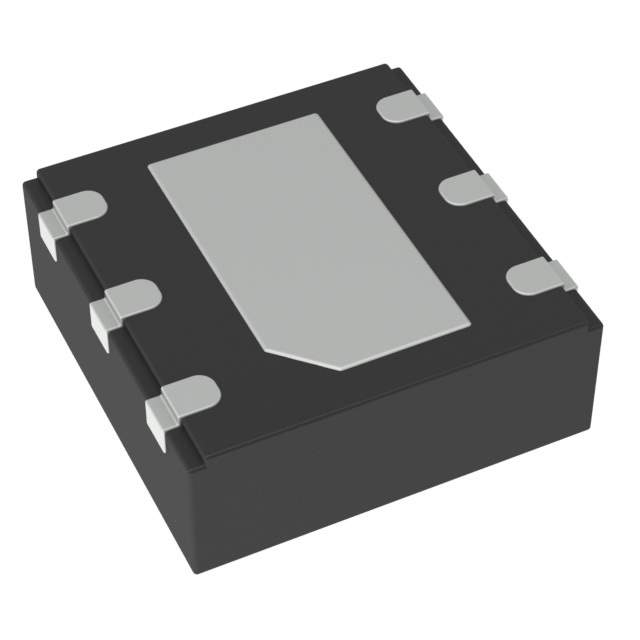

The LD49100PURY comes in a compact DFN6 (3x3mm) package, which is perfect for space-constrained applications. Additionally, the device includes several safety features such as over-current protection, short-circuit protection, and thermal shutdown, ensuring the protection of the device and the system under extreme conditions.

The regulator also offers low quiescent current, which significantly reduces power consumption when the device is in idle mode, further contributing to the overall energy efficiency of the application. Moreover, it provides low noise performance, which is essential for sensitive RF and analog circuits that require a clean power supply.

In summary, the LD49100PURY from STMicroelectronics is a robust, efficient, and reliable voltage regulator that meets the needs of modern electronic devices. Its low dropout performance, combined with a strong set of protection features, makes it an excellent choice for designers looking to optimize their power management solutions.
