Products specifications

Categories Integrated Circuits
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Applications Converter, Analog and Digital Satellite STB Receivers/SatTV
Voltage - Input 8 V to 15 V
Number of Outputs 2
Output Voltage 13.3V, 18V
Temperature Range - Operating 0°C to 85°C
Mounting SMD (SMT)

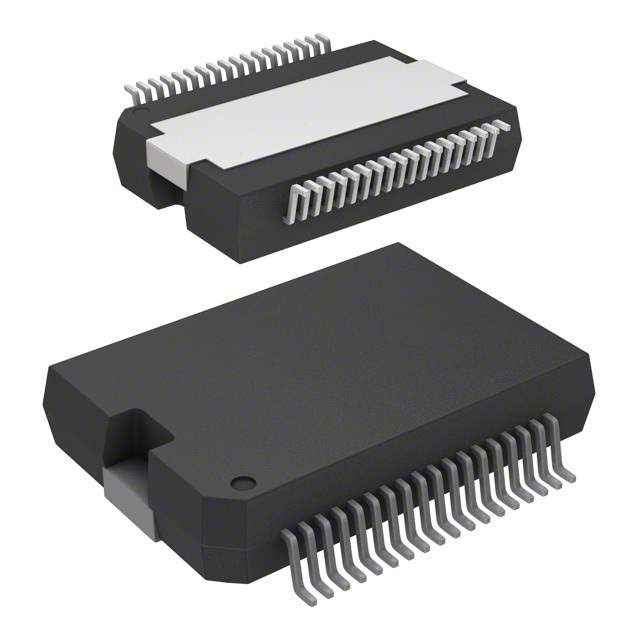

Case / Package PowerSO-36
Win Source Part Number 118189-LNBH221PD-TR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LNBH221PD-TR CAD Model

Description

Product Overview: LNBH221PD-TR from STMicroelectronics

The LNBH221PD-TR is a cutting-edge monolithic voltage regulator and interface IC, specifically designed for supplying and controlling 13/18 V dual LNB (Low Noise Block) in advanced satellite set-top box applications. Manufactured by STMicroelectronics, a leader in semiconductor solutions, the LNBH221PD-TR is engineered to meet the rigorous demands of modern satellite receiver systems.

Key Features

  • Integrated Power Management: The LNBH221PD-TR includes a built-in step-up converter and I2C-compatible interface, which allows for seamless communication with the main processor. It provides a highly efficient power management solution with minimal external components required.
  • Dual LNB Support: With its ability to manage two LNBs, this IC is ideal for multi-tuner satellite receivers, enabling the reception of signals from different transponders or satellites simultaneously.
  • DiSEqC 2.x Compliant: The device is fully compliant with the DiSEqC 2.x standard, allowing for bi-directional communication between the satellite dish and set-top box. This enables advanced functions such as remote dish alignment and polarization control.
  • Enhanced Protection: The LNBH221PD-TR is equipped with a comprehensive set of protections, including over-temperature, over-current, and over-voltage protection, ensuring reliable operation and longevity of the application.
  • Low Power Consumption: Designed with power efficiency in mind, the device operates with low quiescent current, reducing overall power consumption of the system.

Applications

The LNBH221PD-TR is suitable for a wide range of satellite receiver applications, including:

  • Satellite set-top boxes
  • Personal video recorders (PVR)
  • Home gateways
  • Multi-tuner digital satellite receivers

Conclusion

STMicroelectronics' LNBH221PD-TR is a robust and versatile solution for satellite TV equipment manufacturers looking to integrate dual LNB control with high efficiency and reliability. Its integration of advanced features, protection mechanisms, and compliance with industry standards make it an excellent choice for next-generation satellite receiver systems.
