LSM6DS33TR 6-Axis Inertial Module

The LSM6DS33TR is a state-of-the-art 6-axis inertial measurement unit (IMU) designed and manufactured by STMicroelectronics, a leader in the semiconductor industry. This compact and versatile sensor integrates a 3D digital accelerometer and a 3D digital gyroscope into a single package, making it an ideal solution for advanced motion and gesture detection in a wide range of applications.

Key Features

• High Precision: The LSM6DS33TR offers excellent stability with a 16-bit data output for both the accelerometer and gyroscope.
• Wide Range: The accelerometer has user-selectable full scales of ±2/±4/±8/±16 g, and the gyroscope has full scales of ±125/±245/±500/±1000/±2000 dps (degrees per second).
• Smart Functionality: With embedded functions such as a pedometer, significant motion detection, tilt detection, and a configurable finite state machine, this IMU can handle complex tasks while reducing the workload on the host processor.
• Advanced Power Management: The LSM6DS33TR supports different operating modes designed to optimize power consumption based on the required performance level.

Applications

The versatility of the LSM6DS33TR allows it to be used in a myriad of applications, including but not limited to:

• Smartphones and Tablets
• Wearable Devices
• Gaming and Virtual Reality Input Devices
• Industrial and Robotics Applications
• Drones and Unmanned Aerial Vehicles (UAVs)

Technical Specifications

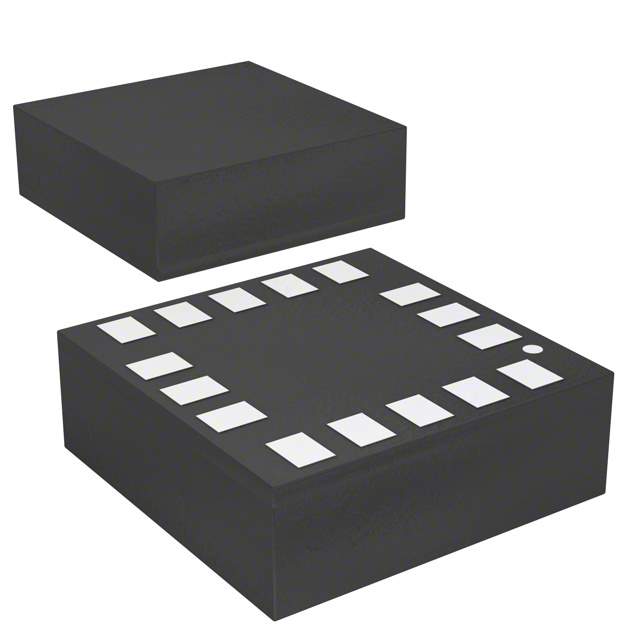

The LSM6DS33TR operates over a wide temperature range from -40°C to +85°C and is available in a plastic land grid array (LGA) package that measures just 2.5x3x0.83 mm. It also features I2C/SPI digital output interfaces, making it easy to integrate with a variety of microcontrollers and processors.

With its robust design and advanced features, the LSM6DS33TR is an excellent choice for developers looking to incorporate motion sensing capabilities into their designs with minimal effort and maximum reliability.
