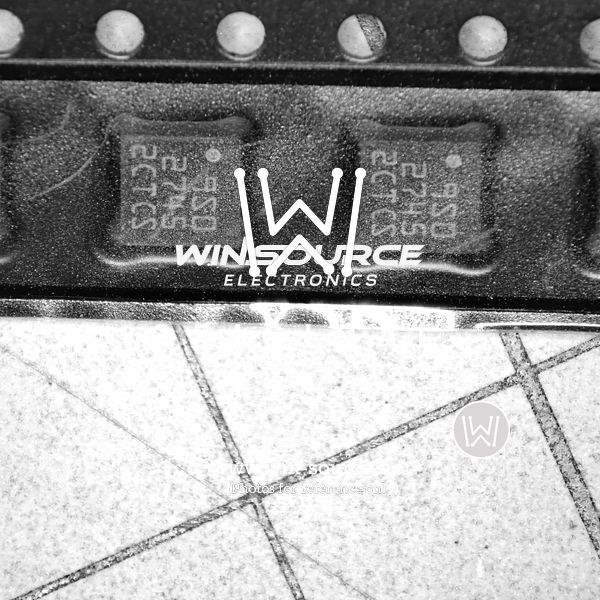

STMicroelectronics LSM9DS0TR 9-Axis MEMS Motion Tracking Device

The LSM9DS0TR is a state-of-the-art motion sensor module from STMicroelectronics, designed to provide a comprehensive 9-axis motion tracking solution. This compact, system-in-package features a 3D digital linear acceleration sensor, a 3D digital angular rate sensor (gyroscope), and a 3D digital magnetic sensor (magnetometer), all integrated into one unit. The device is engineered to deliver high-performance motion detection, making it an ideal choice for a wide range of applications including gaming and virtual reality input devices, mobile phones, tablets, and wearable sensors.

The LSM9DS0TR utilizes advanced MEMS (Micro-Electro-Mechanical Systems) technology to precisely measure linear acceleration, angular rate, and magnetic field vectors. The accelerometer and gyroscope have user-selectable full-scale ranges of ±2/±4/±6/±8/±16 g and ±245/±500/±2000 dps respectively, while the magnetometer boasts a full-scale range of ±2/±4/±8/±12 gauss. This allows for great flexibility and accuracy in a wide array of movement and orientation sensing applications.

Embedded intelligence is a key feature of the LSM9DS0TR. The device includes a host of smart functions such as a FIFO (First In, First Out) buffer, temperature sensor, and programmable interrupt generators for motion detection and click/double-click events. These features not only provide enhanced functionality but also help to reduce power consumption and extend battery life in portable devices.

Communication with the LSM9DS0TR is facilitated through an I2C/SPI digital interface, offering easy integration with most microcontrollers. The device operates over a wide supply voltage range of 2.4V to 3.6V, making it suitable for use in various electronic products without the need for complex power management.

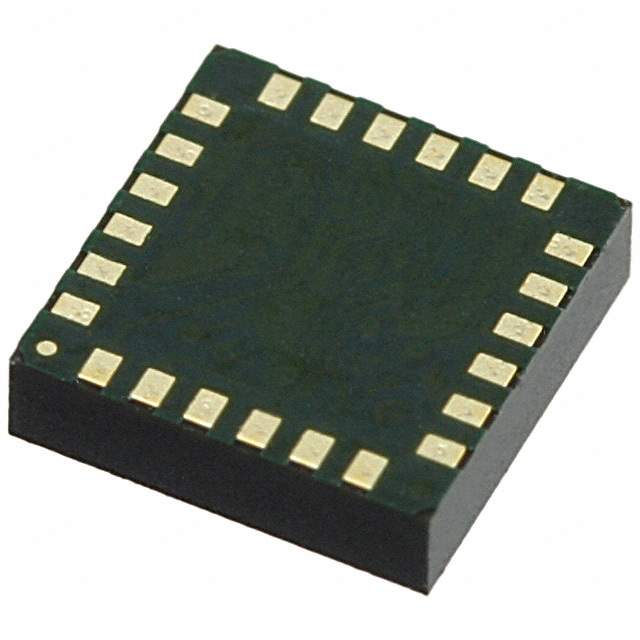

STMicroelectronics has packaged the LSM9DS0TR in a compact LGA (Land Grid Array) package, which is not only space-efficient but also designed for robust and reliable operation. This, combined with the extensive feature set and high performance, makes the LSM9DS0TR an excellent choice for designers seeking to enhance the interactivity and intuitive operation of their next-generation devices.

The LSM9DS0TR is more than just a sensor; it is a versatile and sophisticated solution for the ever-growing demands of motion tracking in the modern world of interconnected and interactive technology.
