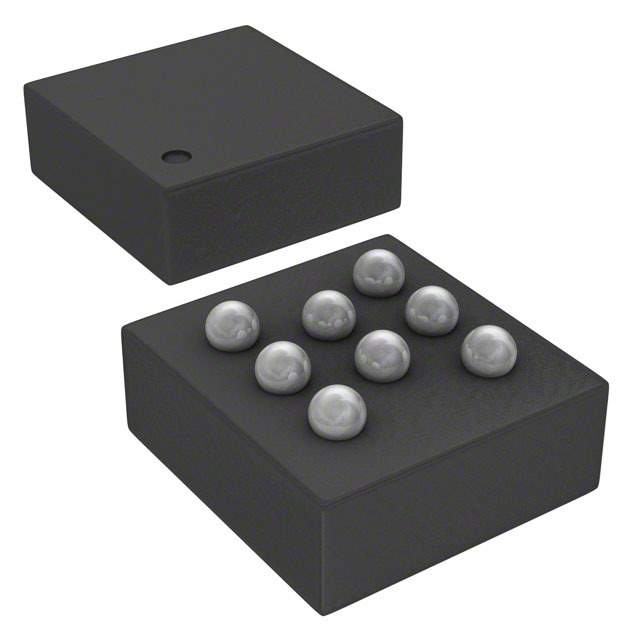

STMicroelectronics M24M01-RCS6TP/A EEPROM

The M24M01-RCS6TP/A is a high-capacity 1 Mbit serial EEPROM product from STMicroelectronics, designed to provide a robust and efficient memory storage solution for a wide range of applications. Utilizing the I2C communication protocol, this EEPROM offers a large 1 Mbit (128K x 8) storage capacity, making it ideal for sophisticated systems that require extensive data logging or configuration settings.

This EEPROM is part of the M24M01 series and comes in an 8-pin TSSOP package, which is suitable for surface-mount technology (SMT) and ensures a compact footprint on printed circuit boards (PCBs). The device is designed to operate over a wide voltage range of 2.5V to 5.5V, which allows for flexibility in various system designs and ensures compatibility with both 3.3V and 5V logic levels.

One of the key features of the M24M01-RCS6TP/A is its fast write cycle times and byte and page write capabilities, which can significantly improve system performance by reducing data transfer times. The device supports a write cycle time of 5 ms (typical) for both byte and page writes, enhancing the overall efficiency of write operations.

For data integrity, the M24M01-RCS6TP/A includes a hardware write control feature. The Write Protect (WP) pin allows users to enable or disable write operations, providing a safeguard against inadvertent writes that could potentially corrupt data. This feature is particularly useful in applications where data stability and reliability are paramount.

Additionally, the EEPROM offers a high data retention period of over 40 years and is rated for more than 1 million write/erase cycles, ensuring the long-term preservation of critical data. Its endurance and reliability make it an excellent choice for applications in industrial, automotive, and consumer electronics where robust memory solutions are required.

STMicroelectronics is known for its commitment to quality and the M24M01-RCS6TP/A is manufactured to meet high standards, ensuring consistent performance and dependability. Whether used in complex microcontroller systems or simple device configurations, this EEPROM provides a versatile and reliable non-volatile memory solution.
